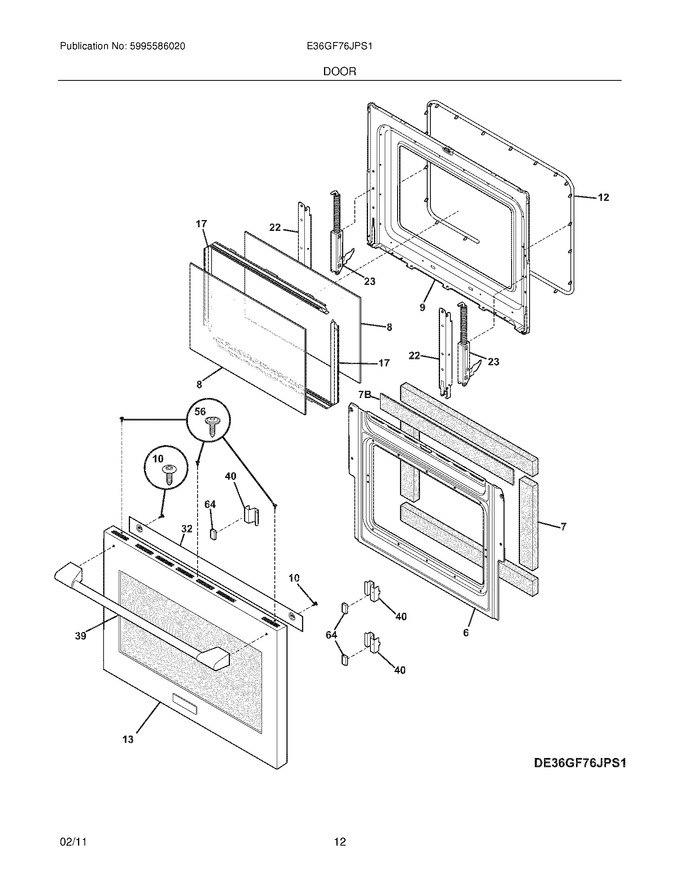

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318260550		Baffle,door		Appelez-nous	-
7	318372003		Insulation,door		Appelez-nous	-
8	318212250		Glass,oven Door ,heat Barrier ,(2)				$ 290.70
9	318364602		Liner,oven Door				$ 437.33
10	240442708		Screw,10-32 X 3/4 ,(4)   (Replaces: 5304400794)				$ 9.27
12	318053151		Gasket,oven Door Seal				$ 110.09
13	318344013		Door Assembly,stainless/glass ,w/badge				$ 724.14
17	318376400		Spacer,door Glass ,(2)		Appelez-nous	-
22	318353803		Retainer,hinge				$ 58.28
23	318244304		Hinge Assy,(2)				$ 317.67
32	318390500		Deflector,handle		Appelez-nous	-
39	318392420		Handle,door		Appelez-nous	-
40	318364700		Bracket,glass ,(4)		Appelez-nous	-
56	5303300265		Screw,8-18 X 1/2 ,(4)				$ 16.85
64	318165800		Spacer				$ 19.69
7B	318106068		Insulation,w/aluminum Foil		Appelez-nous	-
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.36
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 16.54
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304437044		Screw,10-32 X 1/4 ,black ,(4)				$ 9.93
NI	316433603		Label,anti-tip				$ 3.94
NI	318163602		Cleaner,stainless Steel				$ 26.51

    View Diagram in Separate Window       Print Part List
