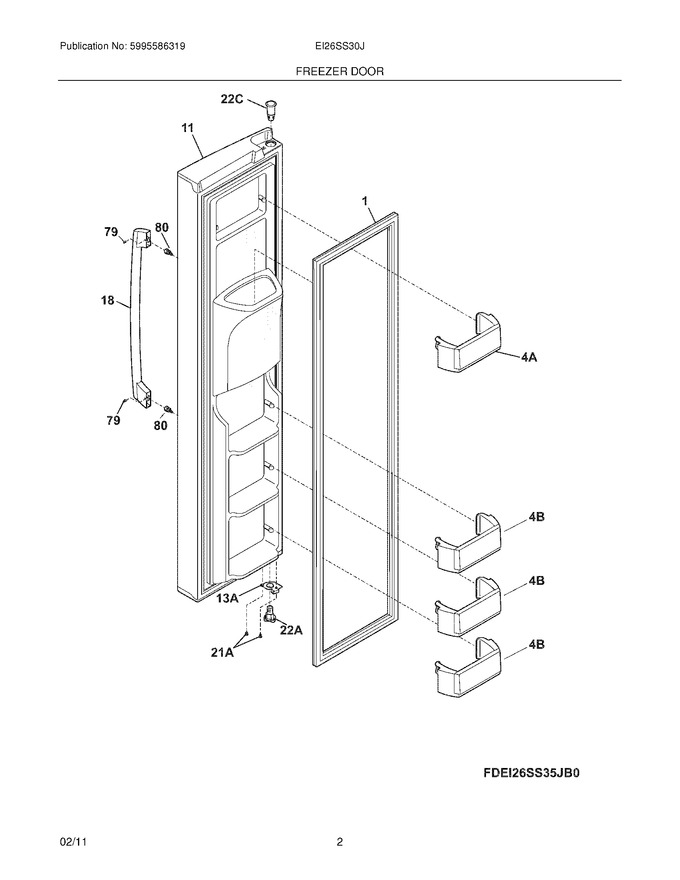

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 242026440 | Door-frzr,white ,complete Assy |
|
- | |||||
| 18 | 241881318 | Handle-door,white |
|
$ 203.56 | |||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 27.80 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 20.67 | ||||
| 13A | 241990202 | Door Stop,black ,frzr |
|
Immediately | $ 23.63 | ||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22A | 241990302 | Bearing-hinge(frz),closer |
|
$ 7.88 | |||||
| 22C | 241760401 | Bearing,hinge ,top |
|
Immediately | $ 21.26 | ||||
| 4A | 241752001 | Bin-door,frzr-upper |
|
$ 58.59 | |||||
| 4B | 242124001 | Freezer Door Bin |
|
- | |||||
| F1 | 241786014 | Gasket-frzr Door,white ,magnetic (Replaces: 241786002) |
|
$ 105.74 | |||||
| FNI | 241834701 | Harness-wiring,door |
|
$ 101.16 | |||||
| NI | 241701902 | Screwdriver-3/32`` Balldriver |
|
$ 22.05 | |||||
| NI | 241601002 | Wrench,allen |
|
- | |||||
| NI | 241806601 | Connector-water,straight (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NI | 240451503 | Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe |
|
$ 4.21 | |||||
| NI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 352.64 |
