SELECT A DIAGRAM

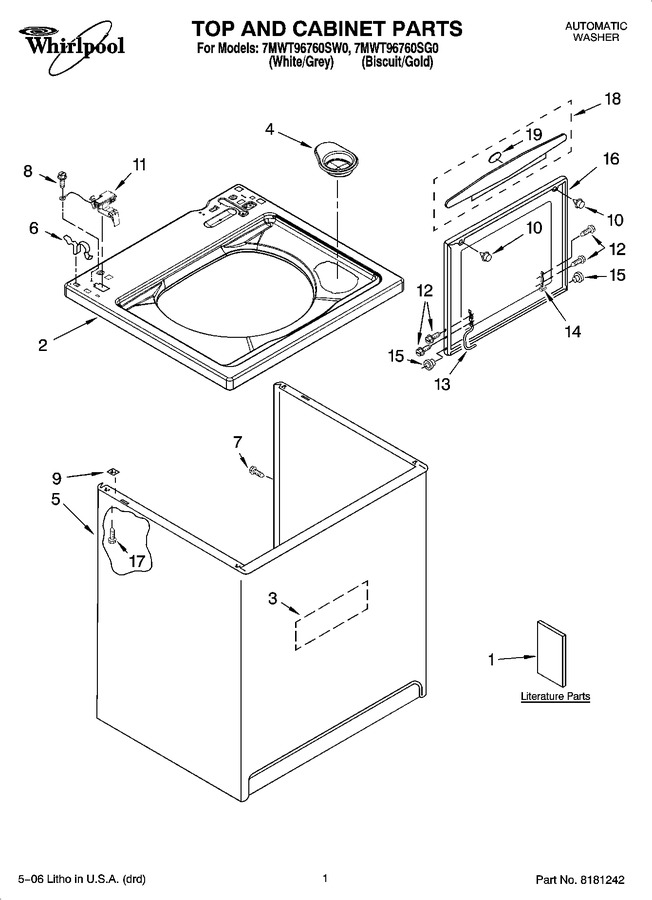

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10071230		Installation Instructions		Appelez-nous	-
1	8542634		Wiring Diagram		Appelez-nous	-
1	8577178		Energy Guide (mexico)		Appelez-nous	-
1	8539806		Use & Care Guide		Appelez-nous	-
1	8558669		Feature Sheet		Appelez-nous	-
2	8566017		Top (white)				$ 126.50
2	8580044		Top (biscuit)		Appelez-nous	-
3	3976348		Cabinet - Sound Damper				$ 37.92
4	8566266		Dispenser, Bleach				$ 39.81
5	63424		Cabinet (white)				$ 370.02
5	3954357		Cabinet (biscuit)				$ 268.04
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.80
7	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
8	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
9	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 7.69
10	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 7.93
11	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 39.82
12	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 355274)			Immediately	$ 7.19
13	8559336		Hinge, Lid (l.h.)		Appelez-nous	-
14	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 27.45
15	8319539		Bearing, Lid Hinge (2)				$ 5.51
16	8577112		Lid (biscuit)		Appelez-nous	-
16	8541777		Lid (white)		Appelez-nous	-
17	WP3390631		Screw, 10-16 X 3/8 (4)   (Replaces: 3390631)				$ 7.82
18	3956012		Handle, Lid (pewter)		Appelez-nous	-
18	3956011		Handle, Lid (sage)		Appelez-nous	-
19	3956010		Insert, Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
