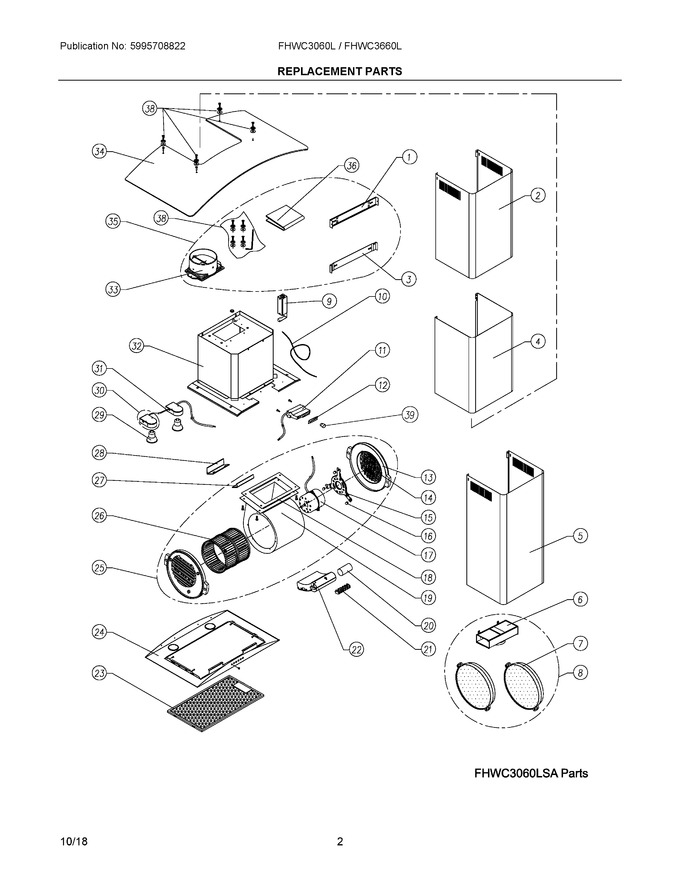

02 - Replacement Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304482265 | Bracket, Chimney Mount, Upper |
|
$ 23.00 | |||||
| 2 | 5304482266 | Chimney, 550 Mm, Upper |
|
$ 291.21 | |||||
| 3 | 5304482267 | Bracket, Chimney Mount, Lower |
|
$ 21.29 | |||||
| 4 | 5304482268 | Chimney, 550 Mm, Lower |
|
$ 282.87 | |||||
| 5 | 5304482269 | Chimney, Extension, 860 Mm, 10 Ft. Ceiling |
|
$ 343.54 | |||||
| 6 | 5304482270 | Recirculation Kit |
|
$ 106.19 | |||||
| 7 | 5304482231 | Filter, Charcoal |
|
$ 42.53 | |||||
| 8 | 5304482271 | Recirculation Kit, W/filters |
|
$ 256.22 | |||||
| 9 | 5304482233 | Junction Box, Power Cord |
|
- | |||||
| 10 | 5304482234 | Power Cord, Electric, W/o Plug |
|
- | |||||
| 11 | 5304482236 | Switch, Push Button |
|
$ 165.99 | |||||
| 12 | 5304482237 | Gasket, Switch |
|
$ 17.72 | |||||
| 13 | 5304482238 | Cover, Blower Motor |
|
$ 32.08 | |||||
| 14 | 5304482239 | Grille, Motor Cover |
|
$ 32.13 | |||||
| 15 | 5304482240 | Bracket, Motor Mount |
|
- | |||||
| 16 | 5304482241 | Grommet, Motor Mount, Rubber |
|
- | |||||
| 17 | 5304529524 | Motor, Blower (Replaces: 5304482242) |
|
$ 273.93 | |||||
| 18 | 5304482247 | Insulator, Antivibration, Seal |
|
- | |||||
| 19 | 5304482248 | Housing, Blower Assembly, Scroll |
|
- | |||||
| 20 | 5304529524 | Capacitor, Motor (Replaces: 5304482249) |
|
$ 273.93 | |||||
| 21 | 5304482250 | Terminal Block |
|
$ 36.81 | |||||
| 22 | 5304482251 | Terminal Box, Wiring |
|
$ 23.31 | |||||
| 23 | 5304482272 | Filter, Grease |
|
$ 78.67 | |||||
| 24 | 5304482273 | Housing, Filter, Lamps, Controls |
|
$ 195.62 | |||||
| 25 | 5304532176 | Blower Assembly (Replaces: 5304482255) |
|
$ 418.97 | |||||
| 26 | 5304482256 | Blower Wheel, Turbine |
|
$ 69.27 | |||||
| 27 | 5304482313 | Support, Casing/hood, Connection |
|
- | |||||
| 28 | 5304482314 | Support, Motor Casing, Hood |
|
- | |||||
| 29 | 5304482257 | Lamp, Halogen, 20 W, Type Gu10 |
|
$ 103.67 | |||||
| 30 | 5304482258 | Lamp Holder, Type Gu10 |
|
Immediately | $ 60.67 | ||||
| 31 | 5304482315 | Lamp Holder Assy, (2), W/wiring |
|
$ 225.89 | |||||
| 32 | 5304482274 | Housing, Hood, Stainless Steel |
|
- | |||||
| 33 | 5304482262 | Discharge Collar, Damper (Replaces: 5304482261) |
|
$ 66.25 | |||||
| 34 | 5304482276 | Canopy, Glass, 36 Inch Hood |
|
$ 290.01 | |||||
| 35 | 5304482277 | Installation Kit, Mtg. Hardware |
|
$ 94.55 | |||||
| 36 | 5304482278 | Template, Installation |
|
- | |||||
| 39 | 5304515443 | Cover, Pilot Light, Red, Mech Swtch/hood |
|
$ 4.41 |
