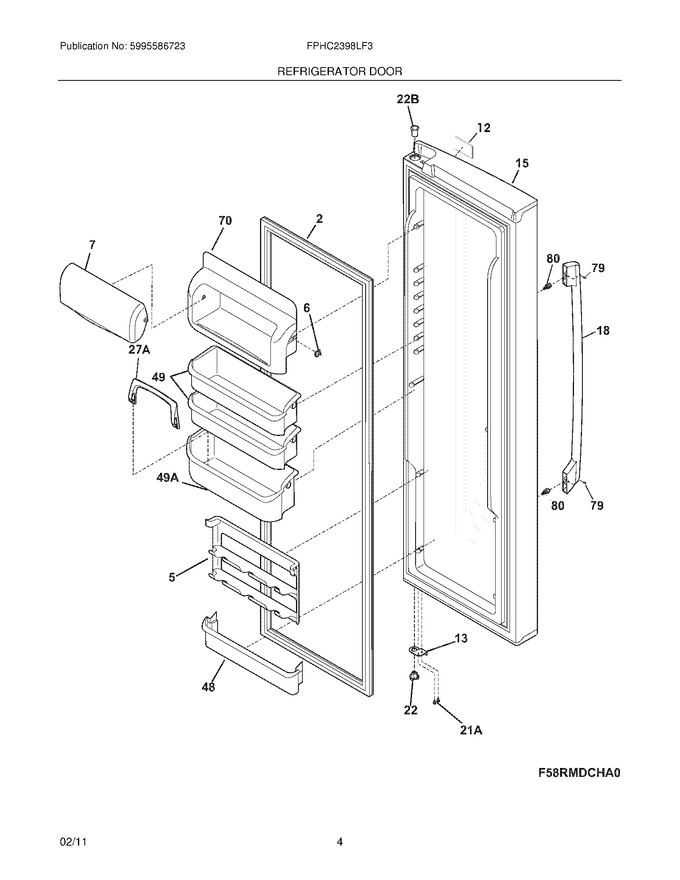

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 47.19
7	241515606		Door-dairy   (Replaces: 241515601)				$ 45.51
12	242015101		Nameplate				$ 5.06
13	241990201		Door Stop,black ,ref				$ 23.63
15	242038855		Door-refr,stainless Steel ,complete Assy				$ 492.39
18	241972501		Handle-door,stainless				$ 227.22
22	241990301		Bearing-hinge,gray				$ 7.88
48	241511701		Bin-door,ref   (Replaces: 241808224)			Immediately	$ 74.68
49	241505301		Bin-door,2 Liter   (Replaces: 241808222)			Immediately	$ 84.89
70	241515801		Compartment-dairy,removable				$ 197.66
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 27.80
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 20.67
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 9.27
22B	241760404		Bearing,hinge ,top				$ 14.18
27A	241812702		Retainer,tall Bottle				$ 18.38
49A	241505501		Bin-door,gallon ,w/trim   (Replaces: 241808223)			Immediately	$ 110.03
F2	241510207		Gasket-refr Door,gray ,magnetic   (Replaces: 241510205)			Immediately	$ 107.93
F49A	241780003		Liner,bin ,gallon				$ 92.14
NI	241779903		Liner,bin ,2 Liter				$ 82.69
NI	241701902		Screwdriver-3/32`` Balldriver				$ 22.05
NI	241601002		Wrench,allen		Appelez-nous	-
