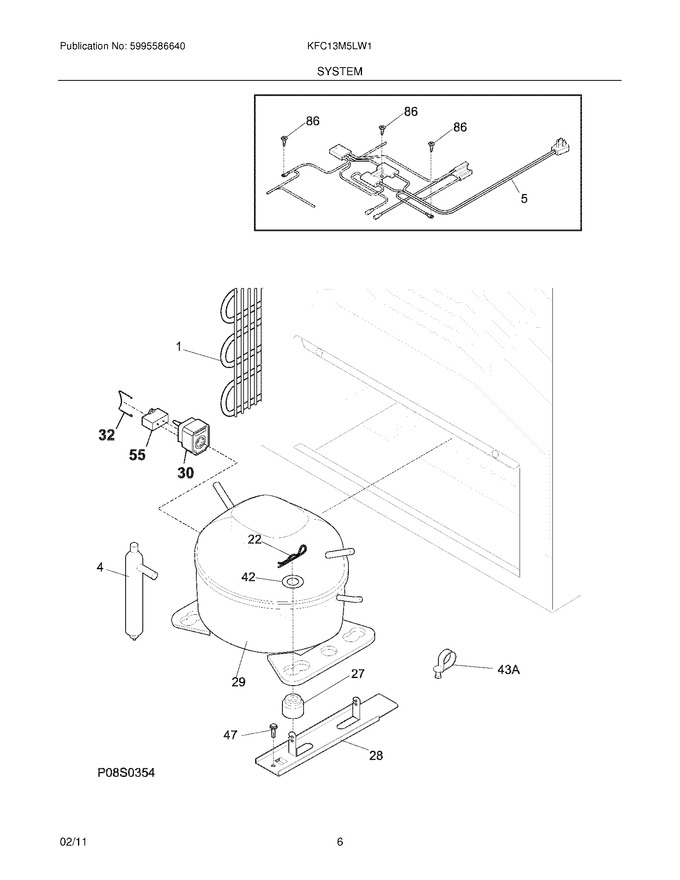

07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303925238 | Condenser |
|
$ 519.75 | |||||
| 4 | 5303305677 | Drier-filter (Replaces: 216987501) |
|
Immediately | $ 35.19 | ||||
| 22 | 242037701 | Clip-compressor Mtg (Replaces: 216056401) |
|
$ 3.15 | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 297293302) |
|
$ 14.46 | |||||
| 28 | 5304464023 | Support,compressor |
|
- | |||||
| 30 | 216954222 | Controller |
|
$ 94.50 | |||||
| 32 | 216649200 | Clip,controller |
|
$ 6.30 | |||||
| 42 | 216232701 | Washer,flat |
|
$ 2.10 | |||||
| 47 | 216629601 | Screw,hex Washer Head ,10-16 X 0.500 ,tapping |
|
$ 14.46 | |||||
| 55 | 297286812 | Capacitor-run,250 Va ,12 Mf (Replaces: 297286802) |
|
Immediately | $ 13.09 | ||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 15.17 | |||||
| 43A | 5303212614 | Clip,harness Mount |
|
$ 3.20 | |||||
| F29 | 297270400 | Compressor,w/o Electricals |
|
- | |||||
| F5 | 216987303 | Harness-main |
|
$ 95.24 |
