SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts

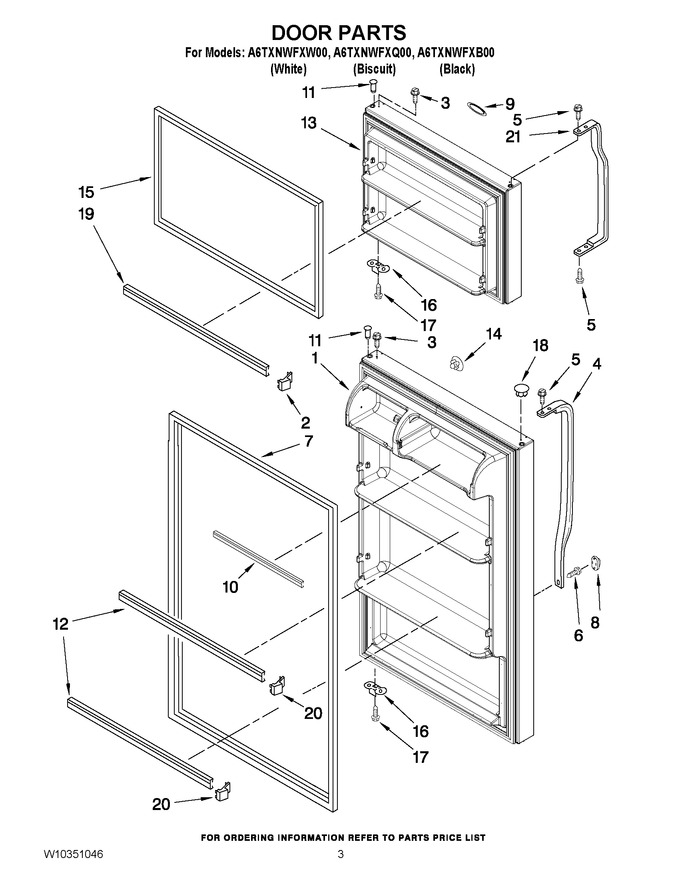

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	L2316145W		Refrigerator Door (includes Itemno. 7) (white)   (Replaces: 2316145W)		Appelez-nous	-
1	2316002T		Refrigerator Door (includes Itemno. 7) (biscuit)		Appelez-nous	-
1	W10337691		Refrigerator Door (includes Itemno. 7) (black)		Appelez-nous	-
2	WP2156003		Plug, Trim   (Replaces: 2156003)			Immediately	$ 12.62
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
4	WP2221946W		Handle, R.c. (bow) (white)   (Replaces: 2221946W)			Immediately	$ 130.11
4	WP2221946T		Handle, R.c. (bow) (biscuit)   (Replaces: 2221946T)				$ 145.01
4	WP2326169B		Handle, R.c. (bow) (black)   (Replaces: 2326169B)				$ 147.38
5	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
6	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
7	WP2319266T		Door Gasket, Magnetic (mist Beige)   (Replaces: W10190034)				$ 171.60
7	2319266B		Door Gasket, Magnetic (black)   (Replaces: 2264725)				$ 358.58
8	WP2202819B		Screw Cover (black)   (Replaces: 2202819B)				$ 10.89
8	WP2202819W		Screw Cover (white)   (Replaces: 2202819W)			Immediately	$ 7.75
8	2202819T		Screw Cover (biscuit)				$ 8.02
9	2325418		Nameplate				$ 44.68
10	W11129820		Trim, Door Shelf (upper)   (Replaces: W10234242)			Immediately	$ 121.28
11	WP2183003		Thimble   (Replaces: 2262054)				$ 7.75
12	WP2266738		Trim, Door   (Replaces: 2266738)				$ 111.69
13	2263254W		Freezer Door (includes Item 15) (white)		Appelez-nous	-
13	2263254B		Freezer Door (includes Item 15) (black)		Appelez-nous	-
13	2263254T		Freezer Door (includes Item 15) (biscuit)		Appelez-nous	-
14	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.40
14	WP2200936		Hole Plug (biscuit)   (Replaces: 2200936)				$ 7.59
15	WP2319263B		Door Gasket, Magnetic (black)   (Replaces: 2264722)			Immediately	$ 255.50
15	WP2319263T		Door Gasket, Magnetic (mist Beige)   (Replaces: W10190031)			Immediately	$ 169.53
16	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
17	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
18	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 23.06
18	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.80
18	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.61
19	WP2266727		Trim-door   (Replaces: 2266727)			Immediately	$ 92.50
20	WP2195916K		Plug-trim   (Replaces: 2195916)			Immediately	$ 12.55
21	2202098B		Handle, F.c. (bow) (black)				$ 144.03
21	WP2202098		Handle, F.c. (bow) (white)   (Replaces: 2202098)				$ 149.35
21	WP2215015		Handle, F.c. (bow) (biscuit)   (Replaces: 2215015)				$ 145.93

    View Diagram in Separate Window       Print Part List
