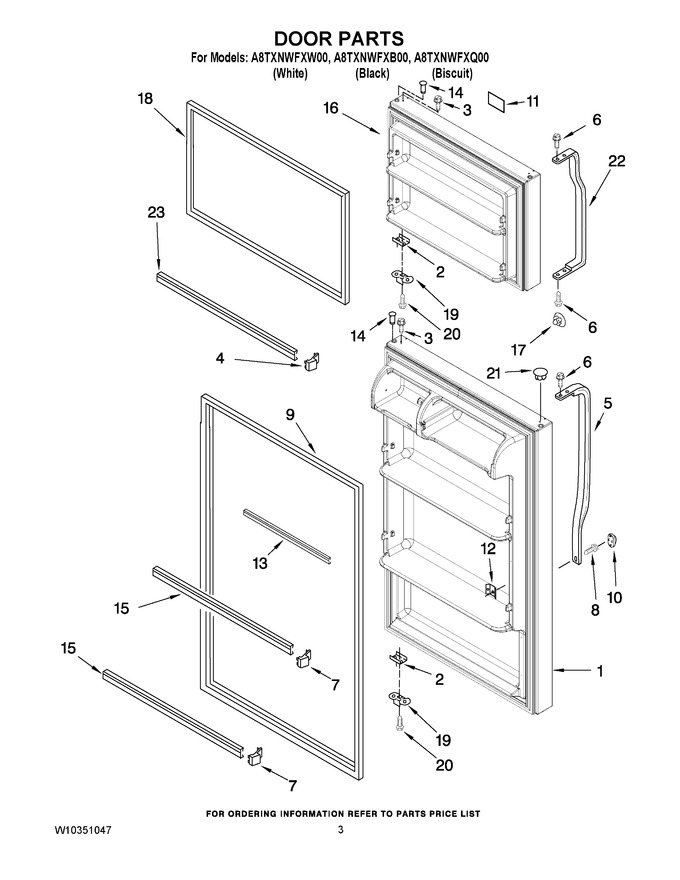

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2263256B		Refrigerator Door (includes Illus. 2, 9, 12 & 14) (black)		Appelez-nous	-
1	2263256T		Refrigerator Door (includes Illus. 2, 9, 12 & 14) (biscuit)		Appelez-nous	-
1	2263256W		Refrigerator Door (includes Illus. 2, 9, 12 & 14) (white)		Appelez-nous	-
2	2183000		Tap Plate				$ 36.19
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
4	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 12.62
5	WP2221946W		Handle, Refrigerator (white)   (Replaces: 2221946W)			Immediately	$ 130.11
5	WP2326169B		Handle, Refrigerator (black)   (Replaces: 2326169B)				$ 147.38
5	WP2221946T		Handle, Refrigerator (biscuit)   (Replaces: 2221946T)				$ 145.01
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
7	WP2195916K		Endcap, Trim   (Replaces: 2195916)			Immediately	$ 12.55
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
9	WP2319264T		Door Gasket, Magnetic (mist Beige)   (Replaces: W10190032)			Immediately	$ 192.71
9	WP2319264B		Door Gasket, Magnetic (black)   (Replaces: 2264723)				$ 308.43
10	WP2202819B		Screw Cover (black)   (Replaces: 2202819B)				$ 10.89
10	2202819T		Screw Cover (biscuit)				$ 8.02
10	WP2202819W		Screw Cover (white)   (Replaces: 2202819W)			Immediately	$ 7.75
11	2325418		Nameplate				$ 44.68
12	WP939101		Screw Anchor   (Replaces: 939101)				$ 7.50
13	W11129820		Trim, Door Shelf (upper)   (Replaces: W10234242)			Immediately	$ 121.28
14	WP2183003		Thimble   (Replaces: 2262054)				$ 7.75
15	WP2266738		Trim, Door (wide)   (Replaces: 2266738)				$ 111.69
16	2263254T		Freezer Door (includes Illus. 14,18 & 24) (biscuit)		Appelez-nous	-
16	2263254B		Freezer Door (includes Illus. 14,18 & 24) (black)		Appelez-nous	-
16	2263254W		Freezer Door (includes Illus. 14,18 & 24) (white)		Appelez-nous	-
17	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 7.40
17	WP2189009		Hole Plug, Handle (black)   (Replaces: 2189009)				$ 7.25
17	WP2200936		Hole Plug, Handle (biscuit)   (Replaces: 2200936)				$ 7.59
18	WP2319263T		Door Gasket, Magnetic (mist Beige)   (Replaces: W10190031)			Immediately	$ 169.53
18	WP2319263B		Door Gasket, Magnetic (black)   (Replaces: 2264722)			Immediately	$ 255.50
19	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
20	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
21	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.80
21	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 23.06
21	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.61
22	2202098B		Handle, Freezer (black)				$ 144.03
22	WP2215015		Handle, Freezer (biscuit)   (Replaces: 2215015)				$ 145.93
22	WP2202098		Handle, Freezer (white)   (Replaces: 2202098)				$ 149.35
23	WP2266727		Trim, Door (2) (narrow)   (Replaces: 2266727)			Immediately	$ 92.50
