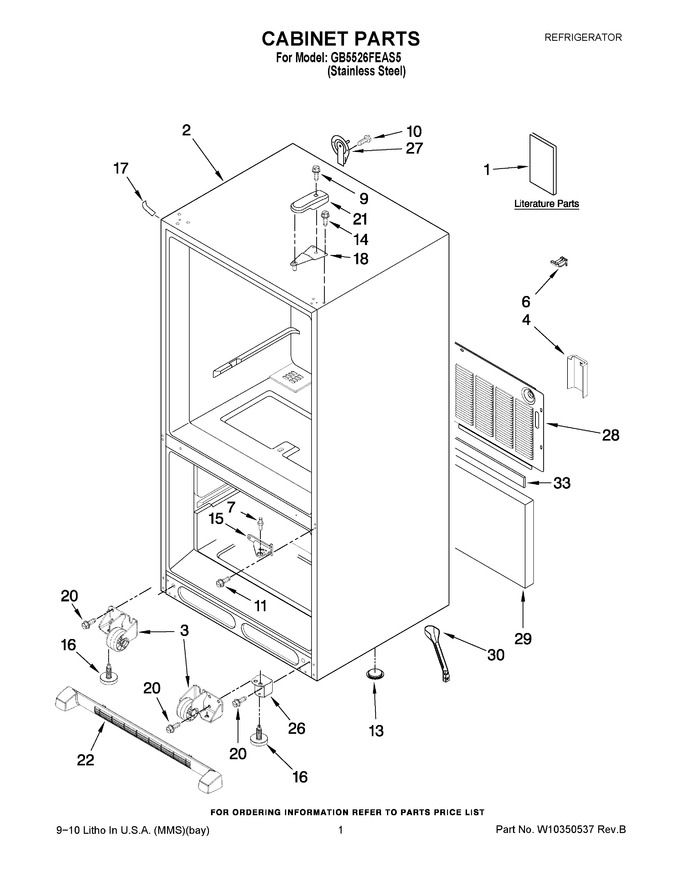

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12828189SP | Owners Manual |
|
- | |||||
| 1 | W10308619 | Tech Sheet |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W11820444 | Assembly, Roller (left) (Replaces: W10275850) |
|
Immediately | $ 37.35 | ||||
| 3 | W11820445 | Assembly, Roller (right) (Replaces: W10275849) |
|
Immediately | $ 37.35 | ||||
| 4 | W10208592 | Guard, Water Valve |
|
- | |||||
| 6 | W10216614 | Sweep, Water Valve |
|
$ 18.51 | |||||
| 7 | WP67006744 | Pin, Center Hinge (Replaces: 10351005) |
|
$ 8.68 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | W11573362 | Screw (Replaces: 12992201) |
|
$ 14.72 | |||||
| 13 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 167.35 | |||||
| 16 | WPW10141622 | Foot Brake (2) (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | 67001012 | Cover-hinge (black) (Replaces: 12477601B) |
|
$ 49.71 | |||||
| 22 | WPW10534167 | Grille Assembly (includes Clips) (black) (Replaces: W10236650) |
|
$ 91.42 | |||||
| 26 | W10325141 | Hinge, Bottom (black) |
|
$ 62.90 | |||||
| 27 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 28 | W10211980 | Cover, Unit |
|
- | |||||
| 29 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 30 | W10619951 | Tube, Drain (Replaces: W10210987) |
|
Immediately | $ 42.39 | ||||
| 33 | B5759655 | Gasket |
|
$ 13.03 |
