SELECT A DIAGRAM

01 - Top And Cabinet Parts

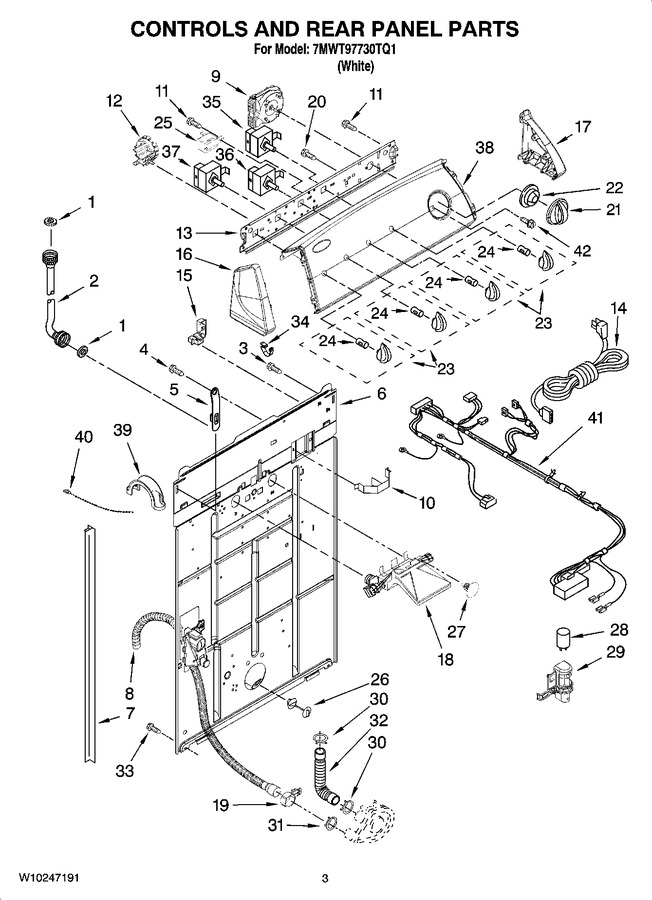

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: W10242307)				$ 7.70
2	WP89503		Hose, Water Inlet (2) (hot Water)   (Replaces: W10196191)			Immediately	$ 24.09
2	WP89503		Hose, Water Inlet (2) (cold Water)   (Replaces: W10194210)			Immediately	$ 24.09
3	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
4	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.78
6	WPW10194450		Panel, Rear   (Replaces: W10194450)				$ 336.62
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	WPW10189267		Hose, Drain Assembly (includes Item 19)   (Replaces: W10189267)			Immediately	$ 70.58
9	WP8577356		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 8577356)			Immediately	$ 205.40
10	8055003		Clip, Harness & Pressure Hose				$ 36.24
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
12	W10339250		Switch, Water Level   (Replaces: 8577842)				$ 211.80
13	8566003		Bracket, Control				$ 64.58
14	W10115689		Cord, Power (includes Item 15)		Appelez-nous	-
15	3952821		Strain Relief, Power Cord		Appelez-nous	-
16	WP8565957		Cap, End (l.h.) (includes Item 34)   (Replaces: 8566035)				$ 61.68
17	WP8565954		Cap, End (r.h.) (includes Item 34)   (Replaces: 8566032)				$ 62.70
18	WPW10278652		Valve, Water Inlet W/vacuum Break   (Replaces: W10278652)				$ 228.71
19	8541668		Clamp, Hose				$ 21.26
20	3400073		Screw, Ground		Appelez-nous	-
21	WP8566022		Knob, Timer   (Replaces: 8566022)				$ 63.41
22	WP8566018		Dial, Timer   (Replaces: 8566018)				$ 51.04
23	8565944		Knob, Control				$ 25.10
24	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
25	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
26	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 18.90
27	W10000080		Clip, Push-in Retainer		Appelez-nous	-
28	WP8572717		Capacitor, Motor Start   (Replaces: 8572717)			Immediately	$ 80.14
29	8318046		Clip, Capacitor				$ 79.31
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
32	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: 3951449)			Immediately	$ 26.68
33	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
34	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
35	WPW10168262		Switch, Rotary   (Replaces: 3949187)				$ 129.76
36	WPW10168257		Switch-rotary   (Replaces: 3949180)				$ 133.33
37	661614		Switch, Water Temperature				$ 56.07
38	W10222529		Panel, Console		Appelez-nous	-
39	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.97
40	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.90
41	W10224861		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-
42	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.96

    View Diagram in Separate Window       Print Part List
