Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Housing, Dispenser (not Serviced) Appelez-nous -
2 W10314407 Facade, Dispenser (black (with Clad)) Special Order $ 96.50

3 W10259995 Control Assembly (black) Appelez-nous -
4 13050701B Sump, Dispenser (black) Appelez-nous -
5 WP13005702B Chute, Ext/yoke (includes Switch) (black)   (Replaces: 13005702B) Special Order $ 330.28

6 67006425 Screw   (Replaces: 12990513) In-Stock Immediately $ 7.30

7 67006295 Ring, Target   (Replaces: 12958301) Special Order $ 55.57

8 M0108106 Clamp, Tube Special Order $ 69.95


    View Diagram in Separate Window     Print Icon   Print Part List

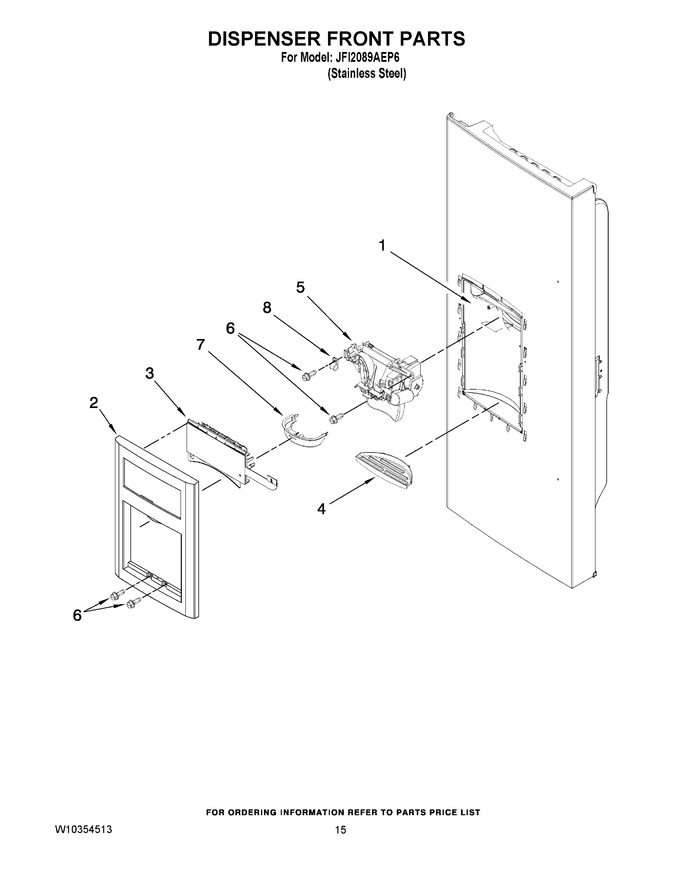

Diagram for JFI2089AEP6
