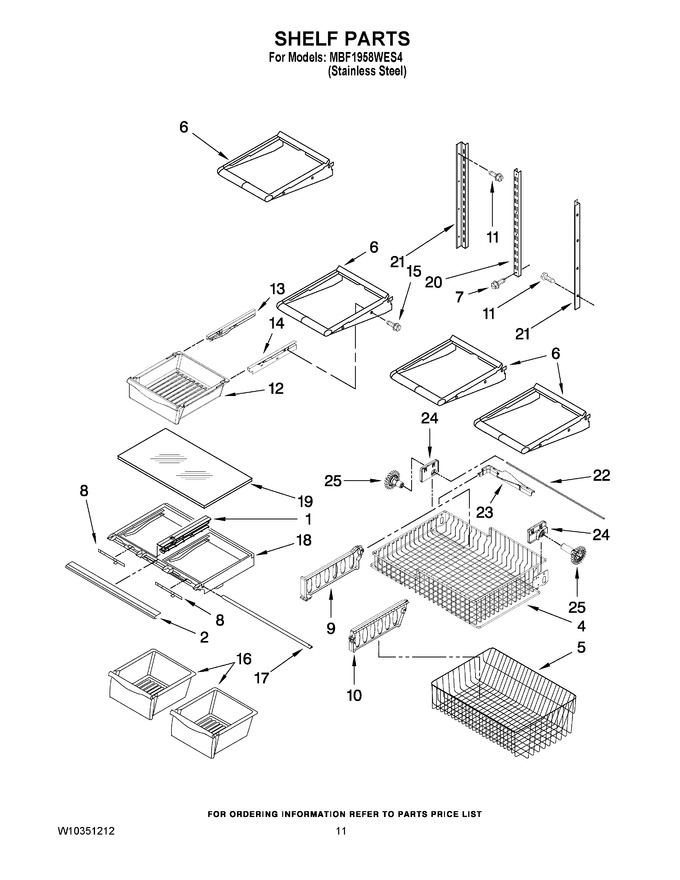

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10671238		Rail, Center Crisper   (Replaces: 12530701N)			Immediately	$ 112.82
2	W10231339		Trim, Crisper				$ 63.41
4	W10169953		Basket, Freezer (upper)		Appelez-nous	-
5	W10503182		Basket, Freezer (lower)   (Replaces: W10146449)				$ 230.45
6	W11402522		Shelf (4)   (Replaces: 12463608V)				$ 203.51
7	W10215666		Screw				$ 9.08
8	WP67005864		Slide, Humidity Control   (Replaces: 12530805SP)			Immediately	$ 7.81
9	W10241046		Divider, Basket (upper)			Immediately	$ 27.80
10	W10205416		Divider, Basket (lower)		Appelez-nous	-
11	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.95
12	WP67001308		Pan, Deli   (Replaces: 12656504V)			Immediately	$ 138.10
13	WP67001054		Glide (left)   (Replaces: 12656601V)			Immediately	$ 8.40
14	WP67001053		Glide (right)   (Replaces: 12656602V)			Immediately	$ 9.24
15	W11233072		Screw, Glide (4)   (Replaces: 12990302V)			Immediately	$ 14.02
16	W10833528		Pan, Crisper   (Replaces: 12531305SP)			Immediately	$ 139.95
17	WP12227302WD		Brace, Crisper   (Replaces: 12227302WD)				$ 106.29
18	WPW10671240		Frame, Crisper   (Replaces: 12530901SP)			Immediately	$ 138.10
19	WP67006877		Glass, Crisper Cover   (Replaces: 12204823N)			Immediately	$ 209.75
20	W10273463		Ladder, Center				$ 28.20
21	W10251970		Ladder, Side				$ 28.47
22	12812906WD		Shaft-rack				$ 42.54
23	W10149389		Lift-bail Arm				$ 88.25
24	W10348260		Mount-gear (right)   (Replaces: W10233899)				$ 85.62
24	W10348259		Mount-gear (left)   (Replaces: W10233898)				$ 85.59
25	WPW10474716		Gear Short-left   (Replaces: W10158749)			Immediately	$ 30.88
25	WPW10474715		Gear Long-right   (Replaces: W10146446)			Immediately	$ 31.20
