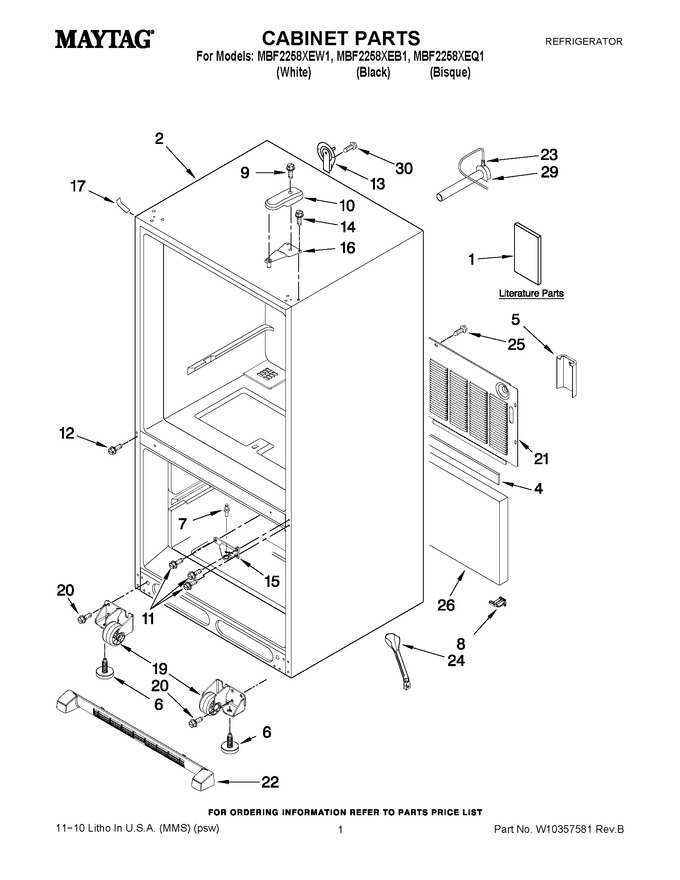

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10322959 | Tech Sheet |
|
- | |||||
| 1 | W10208789 | Use & Care Guide |
|
- | |||||
| 1 | W10325962 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 4 | B5759655 | Gasket |
|
$ 12.41 | |||||
| 5 | W10208592 | Guard, Water Valve |
|
- | |||||
| 6 | WPW10141622 | Foot, Brake (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 7.93 | |||||
| 8 | W10216614 | Sweep, Water Valve |
|
$ 18.51 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | 67001012 | Cover-hinge (black) (Replaces: 12477601B) |
|
$ 47.34 | |||||
| 10 | 12477601C | Cover, Hinge (bisque) |
|
- | |||||
| 10 | 67001014 | Cover-hinge (white) (Replaces: 12477601W) |
|
$ 21.28 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 13 | 12726003 | Cover, Water Line |
|
$ 18.28 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 152.73 | |||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 66.47 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 44.89 | ||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 21.81 | |||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 17 | 12587703C | Cover, Corner (bisque) |
|
- | |||||
| 19 | W11820444 | Roller Assembly (left) (Replaces: W10275850) |
|
Immediately | $ 35.57 | ||||
| 19 | W11820445 | Roller Assembly (right) (Replaces: W10275849) |
|
Immediately | $ 35.57 | ||||
| 20 | 67006564 | Screw (4) (Replaces: 12991302) |
|
Immediately | $ 7.69 | ||||
| 21 | WPW10210979 | Cover, Unit (Replaces: W10210979) |
|
$ 196.41 | |||||
| 22 | WPW10534161 | Grille, Toe (white) (Replaces: W10236195) |
|
$ 140.09 | |||||
| 22 | WPW10534162 | Grille, Toe (black) (Replaces: W10236196) |
|
$ 141.10 | |||||
| 22 | W10236197 | Grille, Toe (bisque) |
|
$ 44.57 | |||||
| 23 | WPM0114003 | Clip, Speed (Replaces: M0114003SP) |
|
$ 11.05 | |||||
| 24 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 26 | 12820505 | Fiber, Acoustic |
|
$ 71.70 | |||||
| 29 | W11176463 | Elbow, Fill Tube (Replaces: 10463203SP) |
|
Immediately | $ 114.15 | ||||
| 30 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 |
