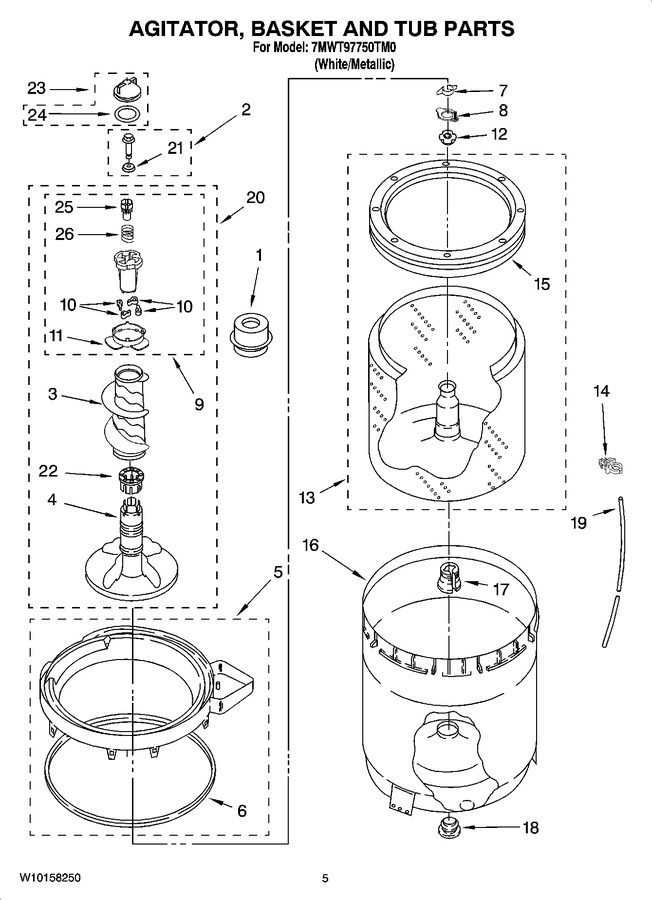

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8580006 | Dispenser, Fabric Softener (Replaces: 8580006) |
|
$ 80.22 | |||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 8.86 | ||||
| 3 | WP8054468 | Auger, Agitator (Replaces: 8054468) |
|
$ 276.20 | |||||
| 4 | WP8578209 | Agitator (Replaces: 8578209) |
|
$ 280.25 | |||||
| 5 | W10880720 | Tub Ring & Gasket (Replaces: 8528150) |
|
Immediately | $ 233.34 | ||||
| 6 | WP3976308 | Gasket, Tub Ring (Replaces: 3976308) |
|
Immediately | $ 29.66 | ||||
| 7 | WP3354845 | Clip, Agitator (Replaces: 3354845) |
|
$ 24.74 | |||||
| 8 | WP8543666 | Washer, Agitator (Replaces: 8543666) |
|
Immediately | $ 12.31 | ||||
| 9 | WP8537434 | Cam, Driven (Replaces: 8537434) |
|
$ 99.09 | |||||
| 10 | 80040 | Dog, Agitator Clutch (4) (Replaces: 3366877) |
|
Immediately | $ 3.64 | ||||
| 11 | WP8055141 | Bearing-driven Cam (Replaces: 8055141) |
|
Immediately | $ 8.13 | ||||
| 12 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 11.56 | ||||
| 13 | W10389328 | Basket & Balance Ring (Replaces: 8526016) |
|
$ 424.81 | |||||
| 14 | 2219077 | Clip, Pressure Switch Hose |
|
$ 64.24 | |||||
| 15 | WP387240 | Balance Ring (Replaces: 8519788) |
|
Immediately | $ 191.15 | ||||
| 16 | 63849 | Tub |
|
$ 306.29 | |||||
| 17 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 18 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.98 | ||||
| 19 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 59.93 | ||||
| 20 | WP8578210 | Agitator (complete) (Replaces: 8578210) |
|
$ 276.24 | |||||
| 21 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 22 | WP8055228 | Spacer, Thrust (Replaces: 8055228) |
|
$ 19.93 | |||||
| 23 | WPW10074580 | Cap, Barrier (Replaces: 3354733) |
|
Immediately | $ 13.02 | ||||
| 24 | WPW10072840 | Seal-inner Cap (Replaces: 3348855) |
|
Immediately | $ 8.72 | ||||
| 25 | WP8533540 | Retainer, Spring (Replaces: 8533540) |
|
$ 8.24 | |||||
| 26 | WP8055140 | Spring, Compression (Replaces: 8055140) |
|
$ 27.71 |
