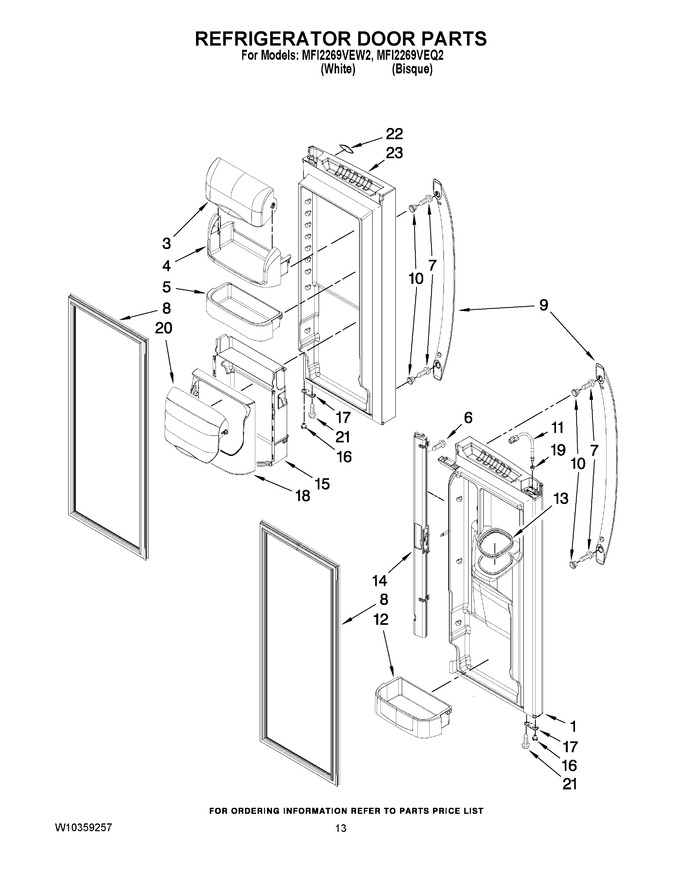

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10160133 | Door, Left (white) |
|
- | |||||
| 1 | W10160127 | Door, Left (bisque) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67006313 | Bin, Shelf (chiller Top) (Replaces: 12945801SP) |
|
Immediately | $ 84.62 | ||||
| 6 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 7 | W10290759 | Screw-handle |
|
$ 5.83 | |||||
| 8 | W11396037 | Gasket, Door (right Door) (white) (Replaces: W10163896) |
|
$ 312.66 | |||||
| 8 | W11501500 | Gasket, Door (left Door) (white) (Replaces: W10163993) |
|
$ 285.66 | |||||
| 9 | 13004701W | Door Handle (white) |
|
$ 193.97 | |||||
| 9 | 67006982 | Door Handle (bisque) (Replaces: 13004701Q) |
|
$ 198.40 | |||||
| 10 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 12.56 | ||||
| 11 | W10275942 | Waterline, Door |
|
Immediately | $ 120.27 | ||||
| 12 | 12840005V | Bin, Shelf (gallon) |
|
- | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: 12665101SP) |
|
Immediately | $ 32.76 | ||||
| 14 | WP12722813W | Mullion, Door (white) (Replaces: 12722813W) |
|
$ 341.27 | |||||
| 14 | WP12722813W | Mullion, Door (bisque) (Replaces: 12722813Q) |
|
$ 341.27 | |||||
| 15 | W11266639 | Frame, Chiller (rear) (Replaces: 12945601SP) |
|
$ 269.63 | |||||
| 16 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 17 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 17 | 12968202Q | Stop, Door (bisque) |
|
- | |||||
| 18 | W11266639 | Frame, Chiller (front) (Replaces: 12945501SP) |
|
$ 269.63 | |||||
| 19 | 12996601 | Clip, Bushing Wire (left Door) |
|
$ 10.05 | |||||
| 20 | WP67006312 | Door, Chiller (Replaces: 12945701SP) |
|
Immediately | $ 86.29 | ||||
| 21 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 22 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 23 | W10160132 | Door, Right (white) |
|
- | |||||
| 23 | W10160126 | Door, Right (bisque) |
|
- |
