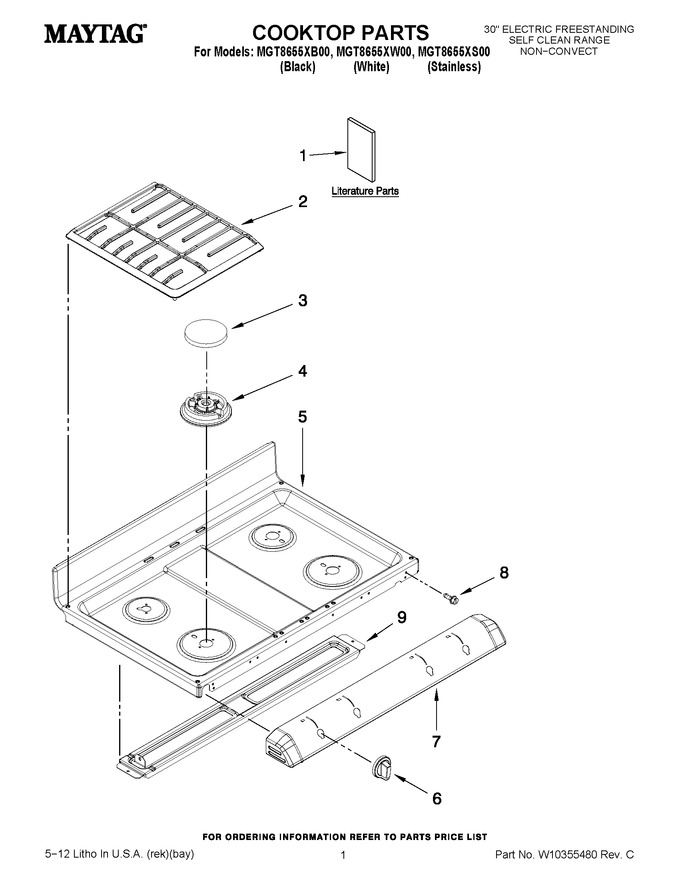

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack And Element Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9762761		Tips, Brochure Safe Cooking		Appelez-nous	-
1	W10291447		Installation Instructions		Appelez-nous	-
1	W10291449		Owners Manual		Appelez-nous	-
1	W10311748		Tech Sheet		Appelez-nous	-
2	W10338217		Kit, Grates (gray)				$ 151.20
2	W10338216		Kit, Grates (black)				$ 152.18
3	WPW10244447		Kit, Burner Cap (black)   (Replaces: W10244447)				$ 200.90
3	WPW10244448		Kit, Burner Cap (gray)   (Replaces: W10244448)				$ 231.06
4	WPW10406797		Burners (right Front & Rear)   (Replaces: 8286182)				$ 92.91
4	WPW10406878		Burners (left Front)   (Replaces: 8286183)				$ 107.48
4	WPW10406243		Burners (left Rear)   (Replaces: 8286181)			Immediately	$ 39.08
5	W10204725		Cooktop (black)		Appelez-nous	-
5	W10336322		Cooktop (white)   (Replaces: W10204726)		Appelez-nous	-
6	W10294792		Knob (stainless)				$ 19.13
6	WPW10296917		Knob (black)   (Replaces: W10296917)				$ 20.88
6	WPW10281279		Knob (white)   (Replaces: W10281279)			Immediately	$ 21.34
7	W10219239		Panel, Manifold (black)		Appelez-nous	-
7	W10219240		Panel, Manifold (white)		Appelez-nous	-
7	W10219242		Panel, Manifold (stainless)				$ 127.68
8	WPY706189		Screw   (Replaces: 7101P347-60)			Immediately	$ 7.55
9	W10272357		Bracket, Cooktop Support		Appelez-nous	-
