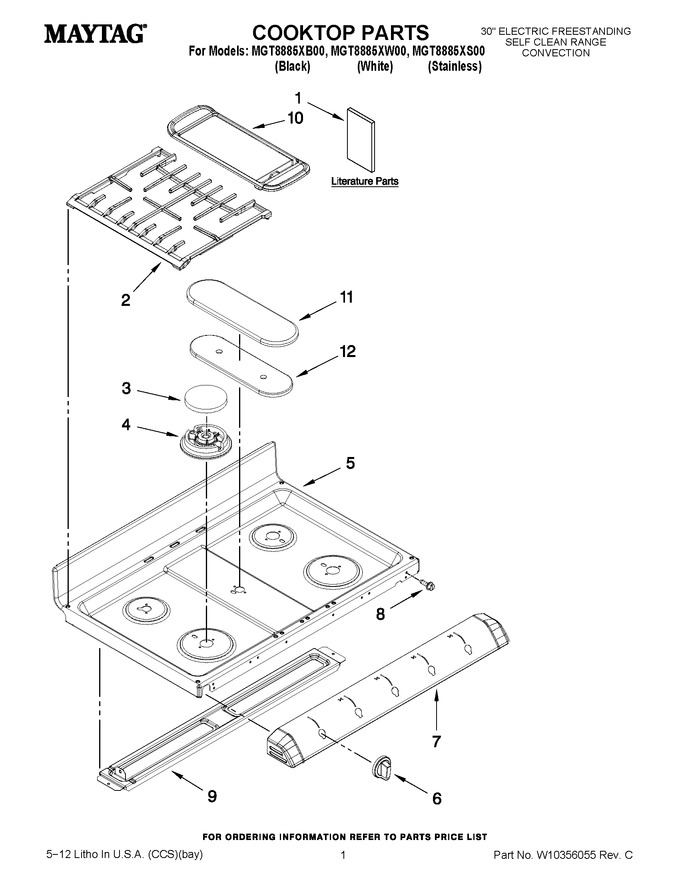

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762761 | Tips, Brochure Safe Cooking |
|
- | |||||
| 1 | W10291449 | Owners Manual |
|
- | |||||
| 1 | W10311752 | Tech Sheet |
|
- | |||||
| 1 | W10291447 | Installation Instructions |
|
- | |||||
| 2 | W10338216 | Kit, Grates (black) |
|
$ 152.18 | |||||
| 2 | W10338217 | Kit, Grates (gray) |
|
$ 151.20 | |||||
| 3 | WPW10299233 | Kit, Burner Cap (black) (Replaces: W10299233) |
|
$ 210.99 | |||||
| 3 | W10299239 | Kit, Burner Cap (gray) |
|
- | |||||
| 4 | WPW10336094 | Burners (center) (Replaces: W10336094) |
|
$ 227.81 | |||||
| 4 | WPW10406243 | Burners (left & Right Rear) (Replaces: 8286181) |
|
Immediately | $ 39.08 | ||||
| 4 | WPW10406797 | Burners (right Front) (Replaces: 8286182) |
|
$ 92.91 | |||||
| 4 | WPW10406878 | Burners (left Front) (Replaces: 8286183) |
|
$ 107.48 | |||||
| 5 | W10336330 | Cooktop (black) (Replaces: W10260169) |
|
$ 420.07 | |||||
| 5 | W10336331 | Cooktop (white) (Replaces: W10260170) |
|
$ 418.08 | |||||
| 6 | W10294792 | Knob (stainless) |
|
$ 19.13 | |||||
| 6 | WPW10281279 | Knob (white) (Replaces: W10281279) |
|
Immediately | $ 21.34 | ||||
| 6 | WPW10296917 | Knob (black) (Replaces: W10296917) |
|
$ 20.88 | |||||
| 7 | W10219246 | Panel, Manifold (stainless) |
|
$ 132.74 | |||||
| 7 | W10219243 | Panel, Manifold (black) |
|
- | |||||
| 7 | W10219244 | Panel, Manifold (white) |
|
- | |||||
| 8 | WPY706189 | Screw (Replaces: 7101P347-60) |
|
Immediately | $ 7.55 | ||||
| 9 | W10272357 | Bracket, Cooktop Support |
|
- | |||||
| 10 | 4396096RB | Griddle (Replaces: W10297135) |
|
$ 282.24 | |||||
| 11 | WPW10171140 | Kit, Fish Burner (black) (Replaces: W10171140) |
|
$ 168.47 | |||||
| 11 | W10171137 | Kit, Fish Burner (gray) |
|
$ 116.61 | |||||
| 12 | WPW10333445 | Base, Burner Cap (fish Burner Only) (Replaces: W10333445) |
|
$ 110.05 |
