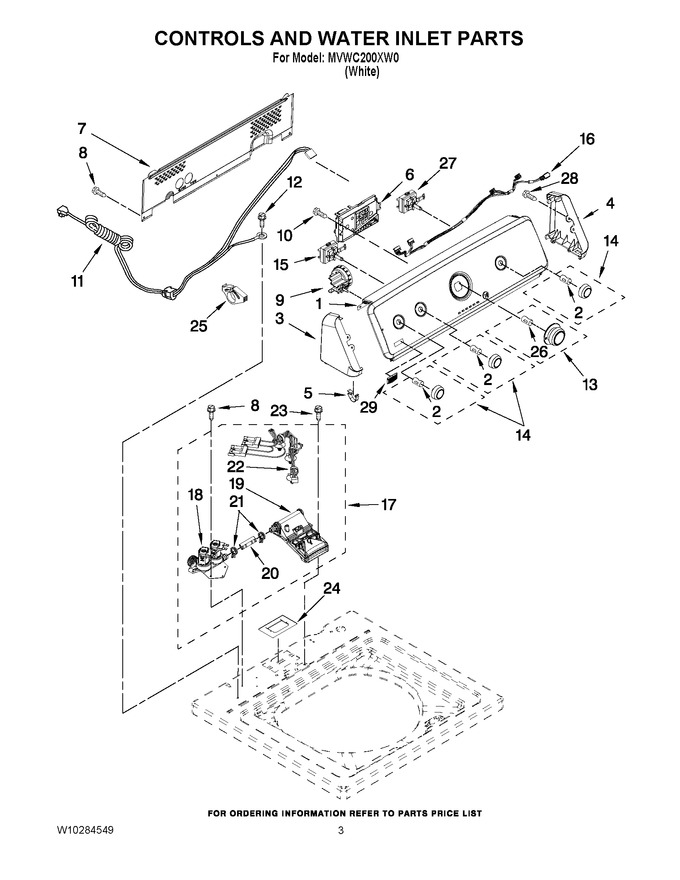

02 - Controls And Water Inlet Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10251333 | Panel, Console |
|
$ 223.14 | |||||
| 2 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | WPW10193824 | Cap, End (l.h.) (includes Item 5) (Replaces: W10193824) |
|
$ 74.39 | |||||
| 4 | WPW10193821 | Cap, End (r.h.) (includes Item 5) (Replaces: W10193821) |
|
$ 74.72 | |||||
| 5 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W10393483 | Control Unit Assembly, Machine & Motor (Replaces: W10296058) |
|
Immediately | $ 407.42 | ||||
| 7 | WPW10420985 | Panel, Console Rear Cover (Replaces: W10251310) |
|
$ 263.85 | |||||
| 8 | WP489069 | Screw, 8-18 X 3/8 (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10268911 | Switch, Water Level (Replaces: W10268911) |
|
Immediately | $ 190.65 | ||||
| 10 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 11 | WPW10525194 | Cord-power (Replaces: W10276649) |
|
$ 163.41 | |||||
| 12 | W10846509 | Screw, Power Cord Ground (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | WPW10317454 | Knob, Timer (Replaces: W10317454) |
|
$ 63.47 | |||||
| 14 | WPW10317455 | Knob, Control (Replaces: W10317455) |
|
$ 63.33 | |||||
| 15 | WPW10285512 | Switch, Rotary Encoder (Replaces: W10285512) |
|
Immediately | $ 190.47 | ||||
| 16 | W10291175 | Harness, Upper |
|
$ 171.94 | |||||
| 17 | WPW10432353 | Inlet Assembly, Water (Replaces: W10337065) |
|
$ 253.44 | |||||
| 18 | WPW10356257 | Valve, Water Mixing (Replaces: W10336721) |
|
Immediately | $ 156.32 | ||||
| 19 | WPW10441423 | Vacuum Break (Replaces: W10334611) |
|
$ 90.33 | |||||
| 20 | W10238347 | Hose, Vacuum Break |
|
$ 25.86 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: W10117298) |
|
Immediately | $ 8.82 | ||||
| 22 | WPW10344775 | Harness, Valve (Replaces: W10337345) |
|
$ 171.51 | |||||
| 23 | WP8281163 | Screw, 8-16 X 1/2 (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 24 | W10240973 | Foam, Ivvb |
|
- | |||||
| 25 | WPW10663966 | Clamp (Replaces: W10348582) |
|
$ 224.26 | |||||
| 26 | WP688805 | Clip, Knob (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 27 | WPW10285511 | Switch, Rotary Encoder (Replaces: W10285511) |
|
Immediately | $ 182.10 | ||||
| 28 | W11693756 | Screw, 8-18 X 1/2 (Replaces: 359625) |
|
Immediately | $ 14.76 | ||||
| 29 | W10323734 | Badge |
|
$ 63.95 |
