SELECT A DIAGRAM

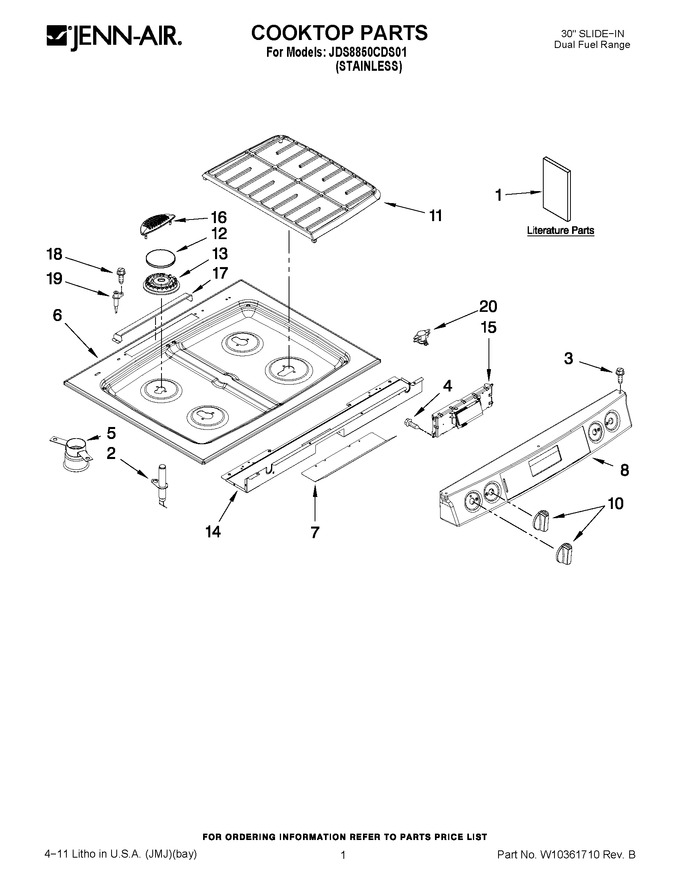

01 - Cooktop Parts


02 - Drawer And Rack Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10235520		Owners Manual		Appelez-nous	-
1	9762761		Safe Ckg Tips (english)		Appelez-nous	-
1	W10065852		Safe Ckg Tips (french)		Appelez-nous	-
1	W10253460		Installation Instructions		Appelez-nous	-
2	WP74009336		Ignitor, Dual   (Replaces: 7432P121-60)			Immediately	$ 27.00
3	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
4	W11846982		Screw   (Replaces: 7101P676-60)				$ 11.75
5	W10233479		Tube, Vent				$ 74.82
6	2001D313-50		Cooktop (stainless)		Appelez-nous	-
7	7003P154-60		Shield, Control		Appelez-nous	-
8	W10314414		Panel, Control (stainless)				$ 389.30
10	W10255425		Knob, Metal				$ 62.67
11	7518P358-60		Grate, Burner (2)		Appelez-nous	-
12	7504P165-60		Cap, Burner (black 12.5k)		Appelez-nous	-
12	7504P243-60		Cap, Burner (outer, Dual)		Appelez-nous	-
12	WP8284669		Cap, Burner (black 5k)   (Replaces: 7504P202-60)			Immediately	$ 75.59
12	7504P204-60		Cap, Burner (black 16k)		Appelez-nous	-
12	7504P242-60		Cap, Burner (inner, Dual)		Appelez-nous	-
13	74007736		Burner, Assy. (rf 16k)   (Replaces: 7505P306-60)			Immediately	$ 117.07
13	7505P349-60		Burner, Assy. (dual, Lf)		Appelez-nous	-
13	74007735		Burner, Assy. (rr 12.5k)   (Replaces: 7505P305-60)			Immediately	$ 114.18
13	74007734		Burner, Assy. (lr 5k)   (Replaces: 7505P304-60)				$ 125.76
14	3807F751-51		Support, Cntl Pnl		Appelez-nous	-
15	WP8507P230-60		Control, Erc   (Replaces: 8507P230-60)				$ 406.80
16	7744P464-60		Cover, Vent (black)				$ 85.09
17	W10312218		Baffle, Vent Cover				$ 108.65
18	WP8273062		Screw   (Replaces: 7101P606-60)			Immediately	$ 7.91
19	WP74009336		Ignitor   (Replaces: 7432P121-60)			Immediately	$ 27.00
20	7403P855-60		Limit, Oven Lwr. (260f/200f)				$ 61.45

    View Diagram in Separate Window       Print Part List
