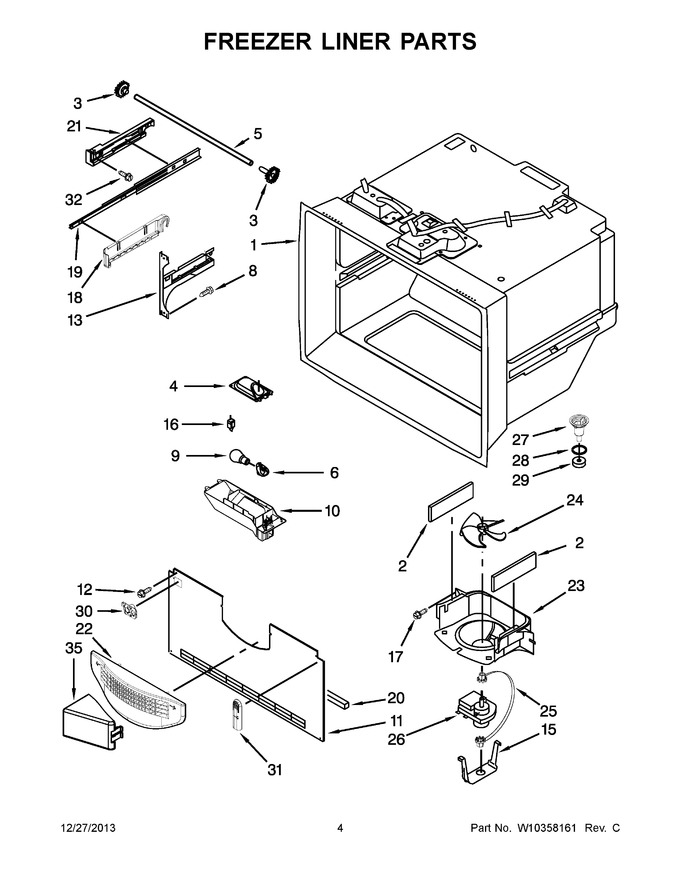

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 7.25 | ||||
| 3 | 12002497 | Gear |
|
Immediately | $ 20.26 | ||||
| 4 | W11702858 | Housing, Light (Replaces: 12476401SP) |
|
$ 81.10 | |||||
| 5 | W11028221 | Shaft, Rack (Replaces: 12812903WD) |
|
$ 29.92 | |||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701SP) |
|
Immediately | $ 12.48 | ||||
| 8 | WP98165 | Screw (Replaces: 12990521) |
|
$ 7.71 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: 2255743N) |
|
Immediately | $ 10.17 | ||||
| 10 | W11712699 | Module, Freezer Light (Replaces: W10119832) |
|
$ 82.82 | |||||
| 11 | W10308420 | Cover, Evaporator |
|
$ 271.82 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 13 | WPW10330994 | Bracket, Door (left Hand) (Replaces: W10119064) |
|
Immediately | $ 152.12 | ||||
| 13 | WPW10330995 | Bracket, Door (right Hand) (Replaces: W10119295) |
|
Immediately | $ 306.55 | ||||
| 15 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466105SP) |
|
Immediately | $ 33.57 | ||||
| 17 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 18 | W10119848 | Cradle, Basket (left Hand) |
|
$ 44.80 | |||||
| 18 | W10119849 | Cradle, Basket (right Hand) |
|
Immediately | $ 79.20 | ||||
| 19 | W11658403 | Slide, Drawer (Replaces: 13055901) |
|
Immediately | $ 202.73 | ||||
| 20 | W11451451 | Gasket, Foam (Replaces: A3189397) |
|
$ 11.73 | |||||
| 21 | WPW10544403 | Adapter, Slide (left Hand) (Replaces: W10284686) |
|
$ 124.27 | |||||
| 21 | WPW10544404 | Adapter, Slide (right Hand) (Replaces: W10284687) |
|
$ 126.79 | |||||
| 22 | WPW10175909 | Grille, Freezer Air (Replaces: 13024803) |
|
Immediately | $ 77.15 | ||||
| 23 | WPW10167023 | Shroud, Evaporator (Replaces: 13057901) |
|
Immediately | $ 94.12 | ||||
| 24 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 25 | W10121318 | Grommet |
|
$ 45.72 | |||||
| 26 | WPW10128551 | Motor, Evaporator (Replaces: W10128551) |
|
Immediately | $ 70.88 | ||||
| 27 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 46.35 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.32 | |||||
| 29 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.00 | |||||
| 30 | W10201550 | Guide, Fill Tube |
|
- | |||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.39 | |||||
| 32 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 7.70 | ||||
| 35 | W10157765 | Diverter, Air |
|
$ 83.57 | |||||
| NI | N/P | Following Parts Not Illustrated, |
|
- | |||||
| NI | W10196195 | Harness, Lights (freezer) |
|
$ 123.50 |
