SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Icemaker Parts

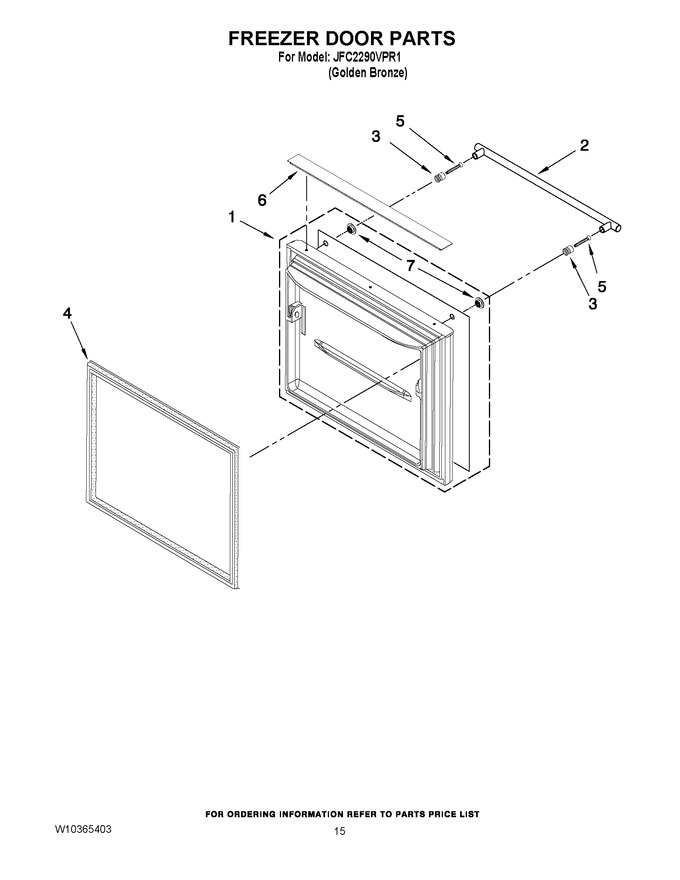

08 - Freezer Door Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12894232R		Door, Freezer (bronze)		Appelez-nous	-
2	W10298180		Handle (bronze)		Appelez-nous	-
3	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
4	W10436252		Gasket, Door (black)   (Replaces: W10164041N)			Immediately	$ 362.28
5	WPW10133608		Screw   (Replaces: 12991202)				$ 10.28
6	W10259825		Trim, Door (black)		Appelez-nous	-
7	W10214142		Spacer, Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
