01 - Cooktop Parts

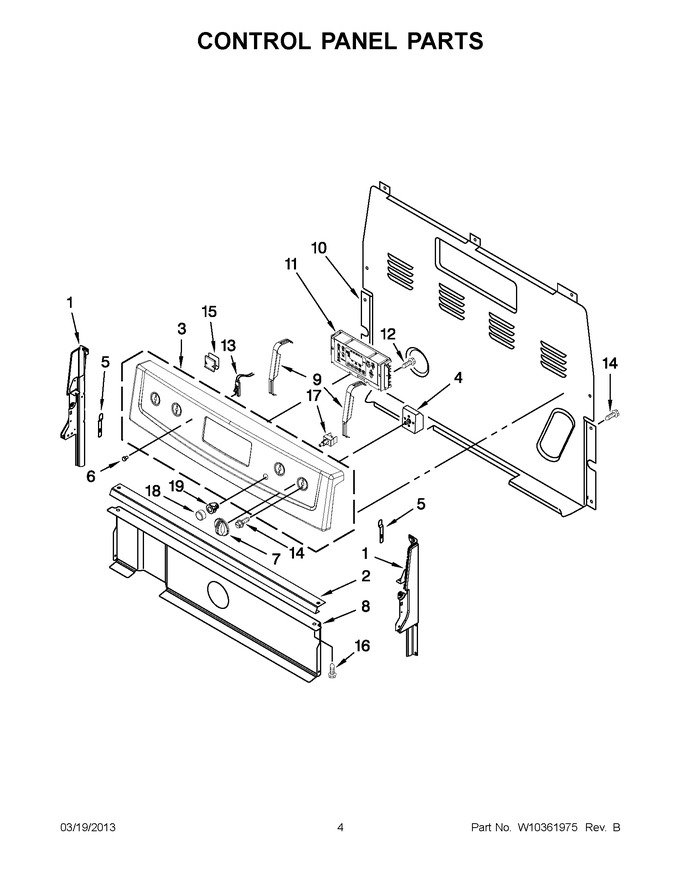

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10184437) |
|
$ 146.50 | |||||
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 40.43 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 57.93 | |||||
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10184438) |
|
$ 40.44 | |||||
| 2 | W10525121 | Bracket, Console Mounting |
|
$ 94.14 | |||||
| 3 | W10315964 | Panel, Control (white) |
|
- | |||||
| 3 | W10315966 | Panel, Control (stainless) |
|
- | |||||
| 3 | W10315965 | Panel, Control (black) |
|
- | |||||
| 4 | WPW10149355 | Switch, Infinite (left Front & Right Front) (Replaces: W10149355) |
|
Immediately | $ 204.91 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear & Left Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 5 | 3196200 | Clip, Spring |
|
$ 9.95 | |||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WPW10211371 | Knob, Infinite (white) (Replaces: W10211371) |
|
Immediately | $ 20.22 | ||||
| 7 | W11193834 | Knob, Infinite (black) (Replaces: W10211372) |
|
$ 84.74 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 341.73 | ||||
| 9 | W11230932 | Bracket, Mounting, Eoc (Replaces: W10138683) |
|
Immediately | $ 80.77 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 208.61 | |||||
| 11 | WPW10476673 | Control, Range (black (lcc95)) (Replaces: W10271760) |
|
$ 439.09 | |||||
| 11 | WPW10476673 | Control, Range (white (lcc95)) (Replaces: W10271759) |
|
$ 439.09 | |||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 13 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 14 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.19 | ||||
| 15 | WP8273564 | Clip, Rear Upper Cover (Replaces: 8273564) |
|
$ 12.06 | |||||
| 16 | 3196166 | Screw (white) |
|
$ 7.01 | |||||
| 16 | WP3400832 | Screw (black) (Replaces: 3196168) |
|
Immediately | $ 7.75 | ||||
| 17 | WP8272820 | Switch, Warm Zone (Replaces: 8272820) |
|
$ 170.39 | |||||
| 18 | 9757492 | Button, Keep Warm (white) |
|
$ 91.44 | |||||
| 18 | 9758491 | Button, Keep Warm (black) |
|
$ 18.80 | |||||
| 19 | W10217760 | Bezel, Keep Warm (white) |
|
$ 24.68 | |||||
| 19 | W10217758 | Bezel, Keep Warm (black) |
|
$ 27.29 |
