Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10369610 Console Asssembly (red) Appelez-nous -
1 W10369608 Console Asssembly (cosmetallic) Appelez-nous -
1 W10369607 Console Asssembly (white) Appelez-nous -
2 W10281852 Handle, Dispenser Drawer (also Shown On Dispenser Parts Page) (white) Appelez-nous -
2 W10316371 Handle, Dispenser Drawer (also Shown On Dispenser Parts Page) (red) Special Order $ 64.27

2 W10315748 Handle, Dispenser Drawer (also Shown On Dispenser Parts Page) (cosmetallic) Special Order $ 74.13

3 W10271989 Harness, Main Ui Special Order $ 250.95

4 W10388205 Control Unit, Central Appelez-nous -
5 W10309986 Harness, Jumper Special Order $ 16.85

6 W10309987 Harness, Jumper Special Order $ 13.08

7 W10208197 Bracket, Console Special Order $ 174.54

8 WP489464 Screw   (Replaces: W10142290) In-Stock Immediately $ 8.38

9 WPW10653575 Channel, Water   (Replaces: W10317570) Special Order $ 90.94

10 W10317566 Clip, Spring Special Order $ 9.16

11 W10271979 Harness, Wiring (upper Main) Special Order $ 110.31

12 W10355021 Ui, Center (includes Knob And Inlay) Appelez-nous -
13 W10514146 Kit, Knob And Inlay In-Stock Immediately $ 109.90


    View Diagram in Separate Window     Print Icon   Print Part List

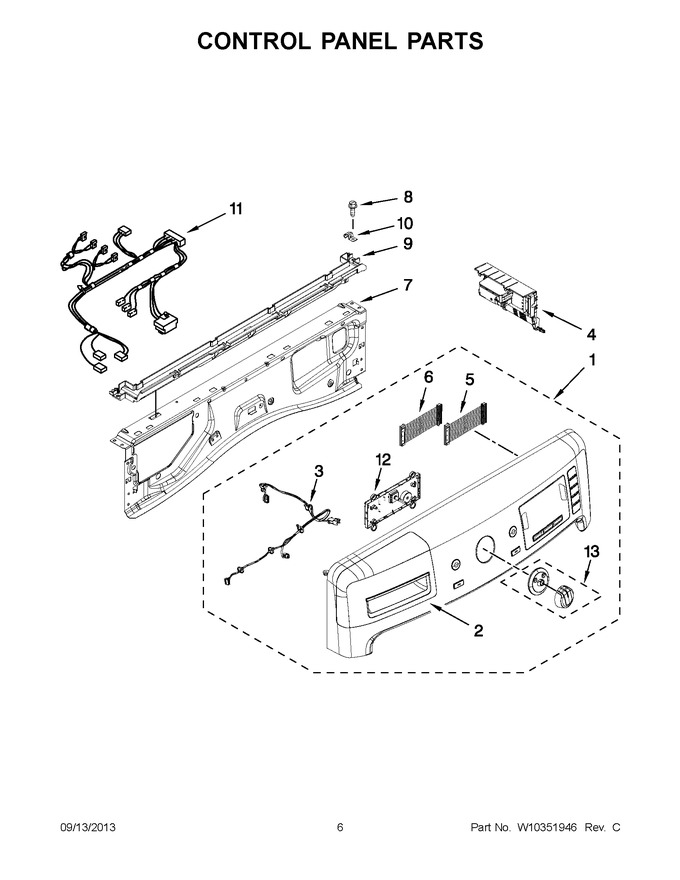

Diagram for MHW6000XG0
