SELECT A DIAGRAM

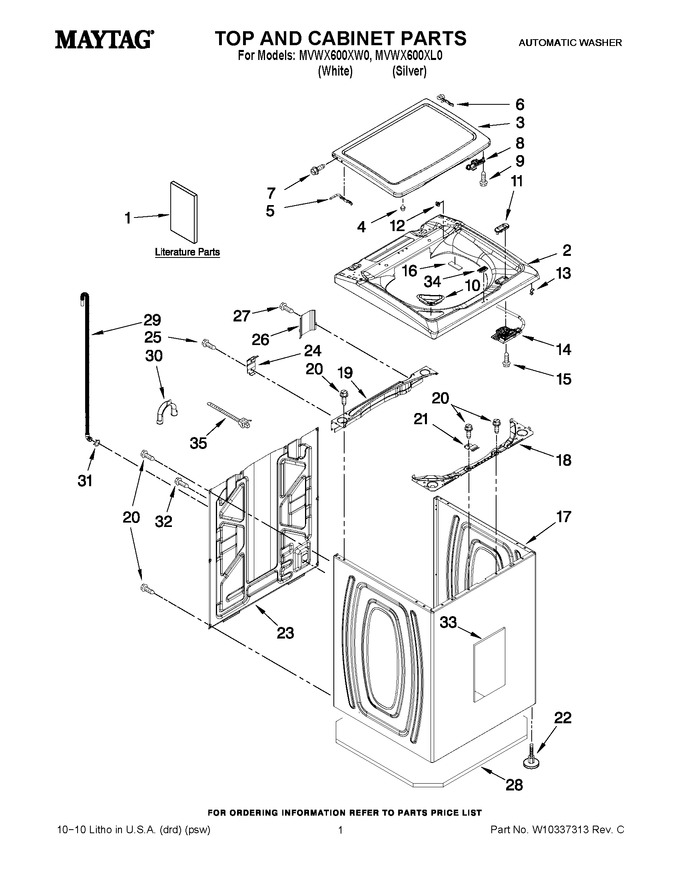

01 - Top And Cabinet Parts


02 - Console And Dispenser Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10062924		Energy Guide		Appelez-nous	-
1	W10240509		Installation Instructions (english/french)		Appelez-nous	-
1	W10240510		Installation Instructions (spanish)		Appelez-nous	-
1	W10280465		Use & Care Guide		Appelez-nous	-
1	W10280504		Instructions, Sound Shield Installation		Appelez-nous	-
1	W10240504		Tech Sheet		Appelez-nous	-
1	W10280498		Quick Start Guide		Appelez-nous	-
2	W10268719		Top (silver)		Appelez-nous	-
2	W10238290		Top (white)				$ 145.90
3	W10270567		Lid (includes Item 4) (silver)		Appelez-nous	-
3	W10270565		Lid (includes Item 4) (white)				$ 367.76
4	WP9724509		Bumper, Lid   (Replaces: 9724509)			Immediately	$ 7.93
5	W10295775		Hinge, Wire (l.h.)				$ 21.84
6	W10569655		Hinge Wire (r.h.)   (Replaces: W10294031)				$ 22.85
7	WPW10119828		Screw, Lid Hinge   (Replaces: W10119828)			Immediately	$ 7.19
8	W11173602		Strike, Lid Lock (dolphin)   (Replaces: W10240514)			Immediately	$ 25.61
8	WPW10240513		Strike, Lid Lock (white)   (Replaces: W10240513)			Immediately	$ 39.57
9	WPW10273971		Screw, 6-19 X 1/2   (Replaces: W10273971)			Immediately	$ 7.19
10	W10304138		Dispenser, Bleach (dolphin)		Appelez-nous	-
10	W10854969		Dispenser, Bleach (white)   (Replaces: W10240977)				$ 104.67
11	WPW10392092		Bezel, Lid Lock (dolphin)   (Replaces: W10240512)				$ 7.71
11	WPW10392041		Bezel, Lid Lock (white)   (Replaces: W10240511)			Immediately	$ 7.62
12	W10293230		Bearing, Lid Hinge (right)				$ 16.04
12	W10293272		Bearing, Lid Hinge (left)				$ 12.86
13	WP90016		Clip, Lid Lock Harness   (Replaces: 90016)				$ 11.32
14	W10404050		Latch, Lid Lock Assembly   (Replaces: W10238287)			Immediately	$ 81.88
15	WP8281163		Screw, 8-16 X 1/2   (Replaces: 8281163)			Immediately	$ 10.19
16	W10333228		Pad, Lid Hinge		Appelez-nous	-
17	W10319854		Cabinet (includes Items 18, 19, 20, 22 & 33) (silver)		Appelez-nous	-
17	W10596395		Cabinet (includes Items 18, 19, 20, 22 & 33) (white)   (Replaces: W10319849)				$ 458.85
18	W11695476		Brace, Cabinet Top - Front   (Replaces: W10215098)				$ 75.99
19	W11712680		Brace, Cabinet Top - Rear   (Replaces: W10215099)				$ 98.93
20	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 7.86
21	WPW10248088		Lock, Top   (Replaces: W10248088)				$ 17.93
22	W10739673		Foot Assembly, Leveling   (Replaces: W10335586)				$ 13.65
23	W11486091		Panel Rear   (Replaces: W10250884)			Immediately	$ 312.11
24	W10432012		Hinge, Top   (Replaces: W10215102)				$ 85.20
25	WP489128		Screw, 8-32 X 3/8   (Replaces: W10142728)				$ 10.88
26	W10676061		Cover, Harness   (Replaces: W10215139)				$ 35.02
27	W10846509		Screw, 10-23 X 5/8   (Replaces: 3400076)			Immediately	$ 7.76
28	W10317148		Absorber, Sound - Cabinet Bottom		Appelez-nous	-
29	W11244231		Hose, Outer Drain Assembly (includes Items 30 & 31)   (Replaces: W10221546)			Immediately	$ 32.07
30	WPW10280024		U-bend, Drain Hose   (Replaces: W10280024)				$ 79.53
31	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
32	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
33	W11096159		Cabinet-damper, Sound   (Replaces: W10177046)				$ 27.36
34	W10492808		Badge, Maytag   (Replaces: W10323735)				$ 56.97
35	WPW10339879		Cable Tie   (Replaces: W10339879)				$ 7.90

    View Diagram in Separate Window       Print Part List
