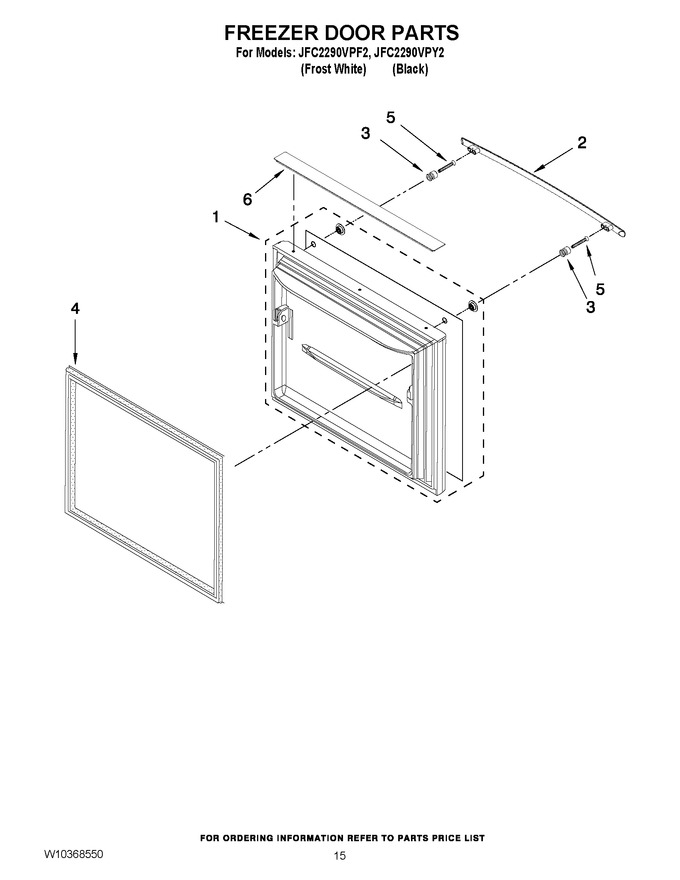

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12894229BQ		Door, Freezer (black)   (Replaces: 12894229B)		Appelez-nous	-
1	12894229W		Door, Freezer (white)		Appelez-nous	-
2	W10298163		Handle (white)   (Replaces: W10298163N)				$ 122.80
2	W10298178		Handle (black)   (Replaces: W10298178N)				$ 122.80
3	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
4	W10436252		Gasket, Door (black)   (Replaces: W10164041N)			Immediately	$ 362.28
4	W10443319		Gasket, Door (white)   (Replaces: W10164040N)				$ 281.76
5	WPW10133608		Screw   (Replaces: 12991202)				$ 10.28
6	W10261282		Trim, Door (white)		Appelez-nous	-
6	W10259825		Trim, Door (black)		Appelez-nous	-
