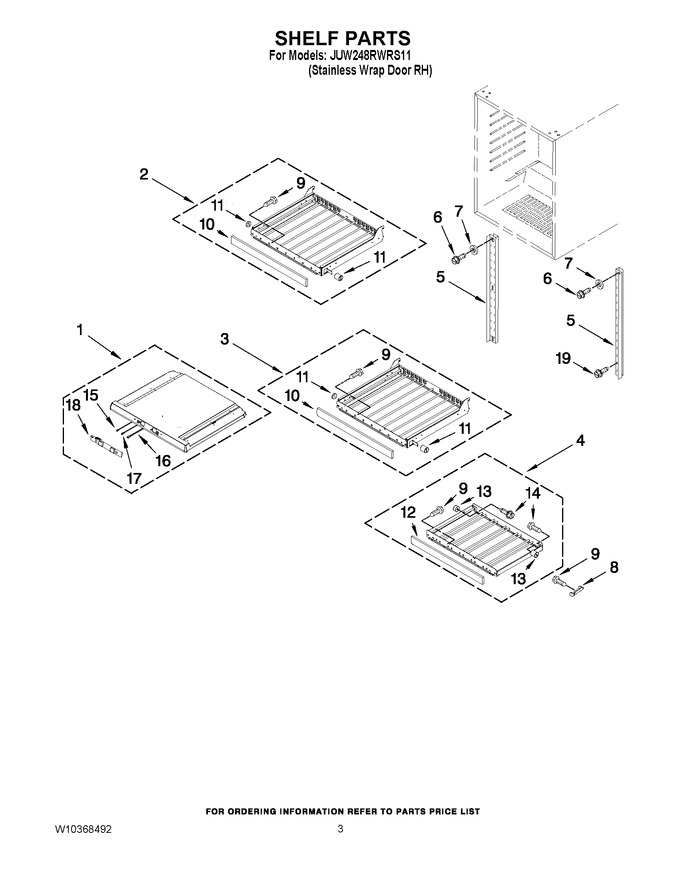

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10282166 | Temperature Separator |
|
- | |||||
| 2 | 4344844 | Wine Rack, (4) |
|
- | |||||
| 3 | 4344845 | Wine Rack, (1) |
|
- | |||||
| 4 | 4344848 | Wine Rack, Lower |
|
$ 114.83 | |||||
| 5 | W10299079 | Ladder, Shelf (right Side) |
|
- | |||||
| 5 | W10299080 | Ladder, Shelf (left Side) |
|
- | |||||
| 6 | 4344794 | Screw |
|
- | |||||
| 7 | 4344795 | Washer |
|
- | |||||
| 8 | 4344850 | Stop, Lower Rack |
|
- | |||||
| 9 | 4344851 | Screw |
|
- | |||||
| 10 | W10239372 | Trim, Top And Middle Racks |
|
- | |||||
| 11 | 4344866 | Support (left) |
|
- | |||||
| 11 | 4344867 | Support (right) |
|
- | |||||
| 12 | W10239374 | Trim, Lower Rack |
|
- | |||||
| 13 | 4344886 | Support, Bumper (right) |
|
- | |||||
| 13 | 4344885 | Support, Bumper (left) |
|
- | |||||
| 14 | 4344914 | Screw (left) |
|
- | |||||
| 14 | 4344915 | Screw (right) |
|
- | |||||
| 15 | W10238024 | Transformer Cable |
|
- | |||||
| 16 | W10238026 | Sensor Assy |
|
$ 138.18 | |||||
| 17 | W10238025 | Sensor Assy, Top |
|
$ 131.24 | |||||
| 18 | W10282164 | Pcb Display Board |
|
$ 391.62 | |||||
| 19 | W10162986 | Screw (w/washer) |
|
- |
