Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10199772 Console Asm. (includes Active Overlay & Insert) (black) Appelez-nous -
1 W10199773 Console Asm. (includes Active Overlay & Insert) (white) Appelez-nous -
1 W10199783 Console Asm. (includes Active Overlay & Insert) (stainless) Appelez-nous -
2 8546546 Clip, Bi-metal Special Order $ 7.82

3 WPW10285179 Control Electronic   (Replaces: W10285179) In-Stock Immediately $ 316.68

4 WP8269209 Switch, Door   (Replaces: 8269209) In-Stock Immediately $ 43.30

5 WPW10404412 Latch Assembly   (Replaces: W10077360) In-Stock Immediately $ 85.50

6 W10258275 Bi-metal   (Replaces: 661663) In-Stock Immediately $ 41.71

7 WPW10348409 Screw   (Replaces: 3369051) In-Stock Immediately $ 8.20


    View Diagram in Separate Window     Print Icon   Print Part List

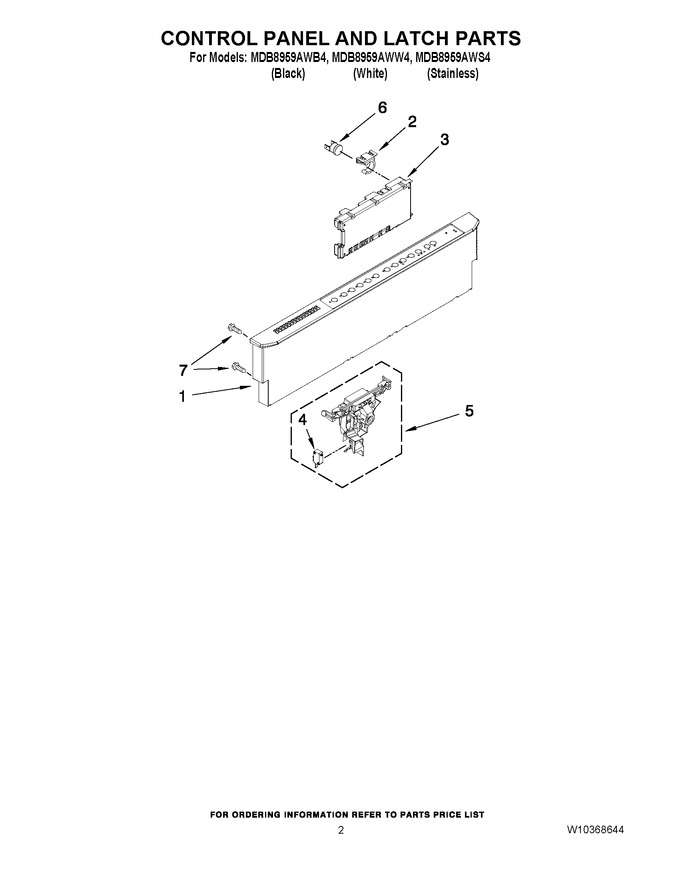

Diagram for MDB8959AWB4
