SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts

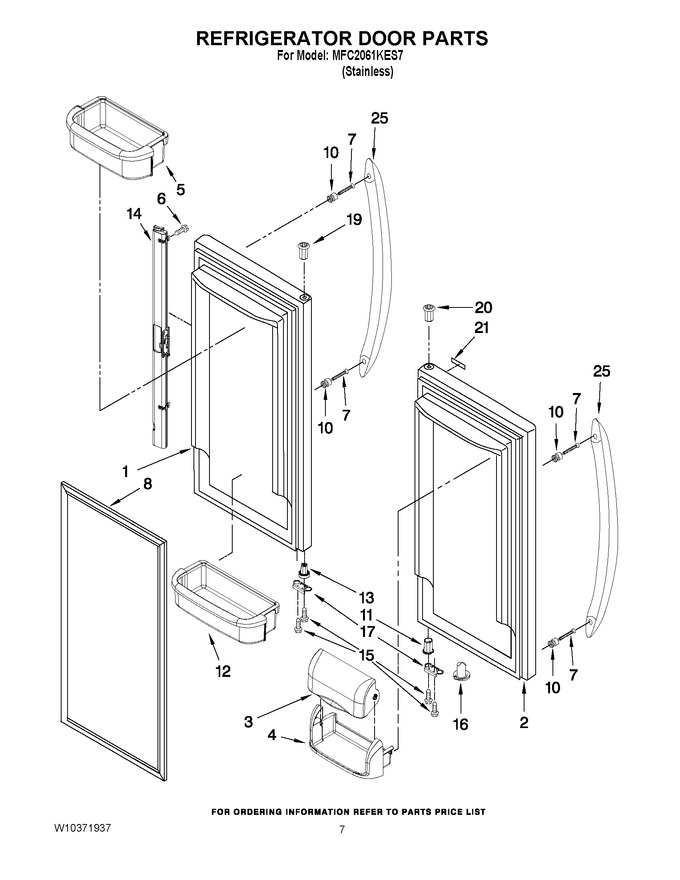

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107719S		Door, Left (stainless)		Appelez-nous	-
2	13107720S		Door, Right (stainless)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	67004040		Bucket, Medium   (Replaces: 12801902)				$ 95.99
6	W11311945		Screw   (Replaces: 12990204)				$ 14.72
7	W10290759		Screw, Mount				$ 5.83
8	W11368721		Gasket, Door   (Replaces: W10163895)			Immediately	$ 169.21
10	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
11	WP67002731		Bushing, Door (bottom Right)   (Replaces: 12028601B)			Immediately	$ 8.24
12	12840001		Bucket, Gallon		Appelez-nous	-
13	WP67002721		Bushing, Door (bottom Left)   (Replaces: 12699301B)			Immediately	$ 8.25
14	WP12722803B		Mullion, Door (black)   (Replaces: 12732501B)			Immediately	$ 206.80
15	WP98165		Screw   (Replaces: 12990504)				$ 8.57
16	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 90.32
17	W11708403		Stop, Door (black)   (Replaces: 12968202B)			Immediately	$ 14.75
19	12395501B		Bushing, Door Upper Left (black)		Appelez-nous	-
20	67004978		Bushing, Door Upper Right (black)   (Replaces: 10961006B)				$ 22.10
21	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
25	W10291144		Handle, Door (stainless)				$ 105.40

    View Diagram in Separate Window       Print Part List
