Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13092265B Door, Freezer (black) Appelez-nous -
1 13092265W Door, Freezer (white) Appelez-nous -
2 67002451 Clip, Handle   (Replaces: 12315104) Special Order $ 8.86

3 12521108S1 Trim, Bottom Appelez-nous -
4 W10443319 Gasket, Door (white)   (Replaces: W10164040) Special Order $ 281.76

4 W10436252 Gasket, Door (black)   (Replaces: W10164041) In-Stock Immediately $ 362.28

5 WP489128 Screw   (Replaces: 12992701) Special Order $ 11.40

6 12521109S1 Trim, Top Special Order $ 97.37

7 12694508S1 Trim, Vertical Appelez-nous -
8 WP3400805 Screw   (Replaces: 12991102) Special Order $ 7.55

9 WPW10298179 Handle, Stainless   (Replaces: W10298179) Special Order $ 319.69

10 WPW10133608 Screw, Handle   (Replaces: 12991202) Special Order $ 10.28

11 WP67006113 Mount, Handle   (Replaces: 13001201) In-Stock Immediately $ 12.56

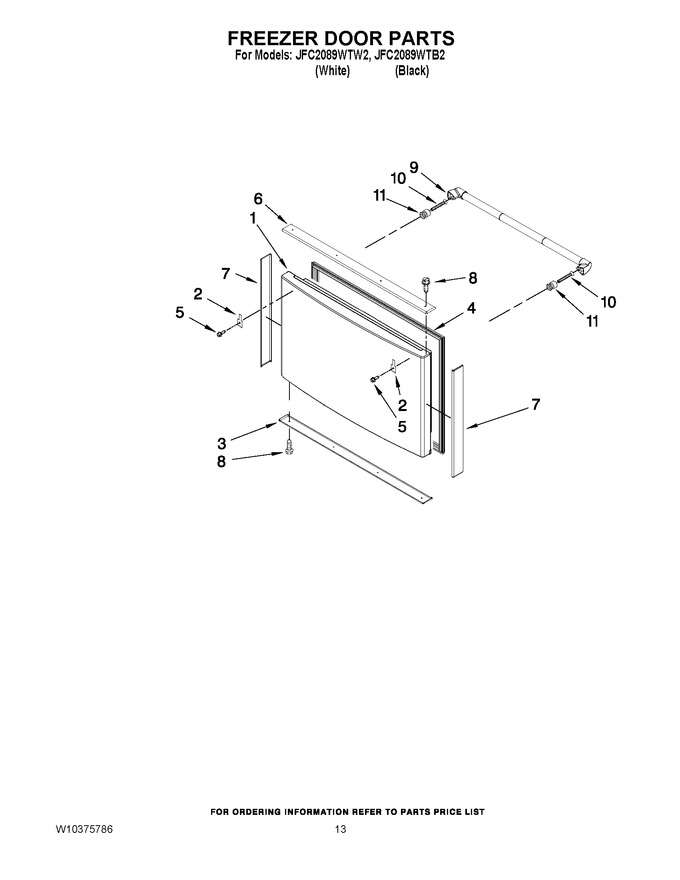

    View Diagram in Separate Window     Print Icon   Print Part List
