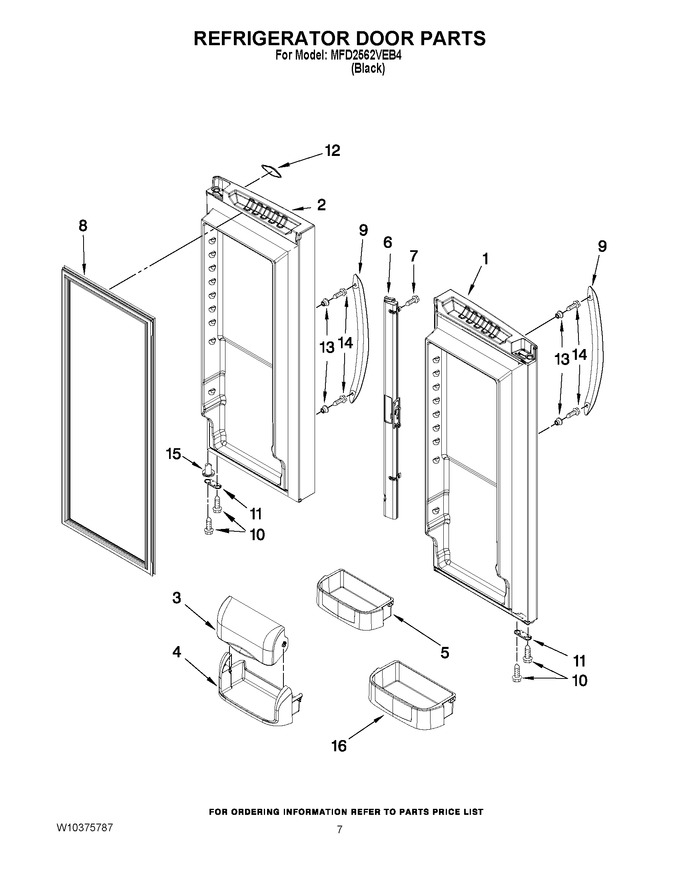

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12978074B		Door, Left (black)		Appelez-nous	-
2	12978075B		Door, Right (black)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	67004748		Bin, Shelf (3) (medium)   (Replaces: 12801904)			Immediately	$ 87.32
6	WP12722803B		Mullion, Door (black)   (Replaces: 12722803B)			Immediately	$ 206.80
7	W11311945		Screw   (Replaces: 12990204)				$ 14.72
8	W11368721		Gasket, Door (2) (black)   (Replaces: W10163895)			Immediately	$ 169.21
9	13004701B		Handle, Door (black)				$ 85.52
10	WP98165		Screw   (Replaces: 12990504)				$ 8.57
11	W11708403		Stop, Door (black)   (Replaces: 12968202B)			Immediately	$ 14.75
12	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
13	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
14	W10290759		Screw				$ 5.83
15	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 90.32
16	67004749		Bin, Shelf (2) (gallon)   (Replaces: 12840002)				$ 90.06
