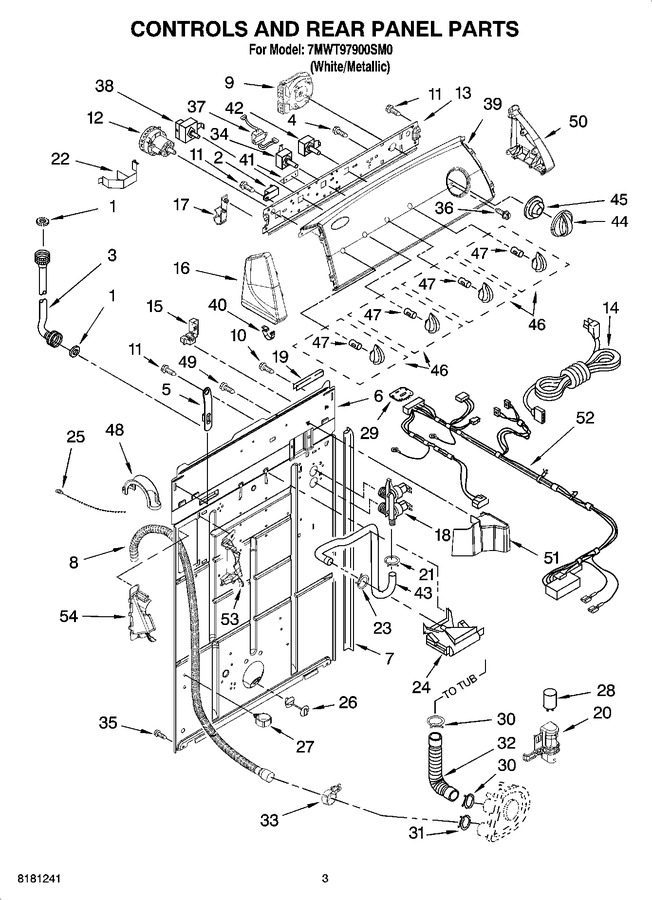

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.70
2	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
3	WP89503		Hose, Water Inlet (2) (red Coupler)   (Replaces: 8571378)			Immediately	$ 24.09
3	WP89503		Hose, Water Inlet (2) (blue Coupler)   (Replaces: 8571377)			Immediately	$ 24.09
4	3400073		Screw, Ground		Appelez-nous	-
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.78
6	8318015		Panel, Rear				$ 148.59
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	WPW10096921		Drain Hose Assembly (includes Items 27 & 33)   (Replaces: 8559373)			Immediately	$ 67.38
9	WP3955765		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 3955765)				$ 324.95
10	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
12	W10339326		Switch, Water Level   (Replaces: 3366845)			Immediately	$ 87.97
13	8566003		Bracket, Control				$ 64.58
14	WP8559419		Cord, Power (includes Item 15)   (Replaces: 8559419)				$ 124.41
15	8559337		Strain Relief, Power Cord		Appelez-nous	-
16	WP8565957		Cap, End (l.h.) (includes Item 40)   (Replaces: 8565957)				$ 61.68
17	8317975		Retainer, Harness				$ 5.86
18	WP3979346		Valve, Water Inlet & Thermistor Assy.   (Replaces: 3979347)			Immediately	$ 76.88
19	303294		Edge Protector		Appelez-nous	-
20	8318046		Clip, Capacitor				$ 79.31
21	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 8.40
22	8055003		Clip, Harness & Pressure Hose				$ 36.24
23	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.40
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.90
26	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 18.90
27	8541667		Clamp, Hose				$ 5.86
28	WP8572720		Capacitor, Motor Start   (Replaces: 8572720)				$ 127.81
29	3407173		Control, Atc		Appelez-nous	-
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
32	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: 3951449)			Immediately	$ 26.68
33	8541668		Clamp, Hose				$ 21.26
34	W10168264		Switch, Rotary   (Replaces: 3950356)				$ 126.34
35	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.96
37	3407174		Transformer		Appelez-nous	-
38	W10168360		Switch, Water Temperature   (Replaces: 3955774)				$ 139.27
39	8543023		Panel, Console		Appelez-nous	-
40	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
41	8316039		Shield, Atc		Appelez-nous	-
42	3956080		Switch, Rotary				$ 172.25
43	WP8317926		Hose, Vacuum Break   (Replaces: 8317974)			Immediately	$ 23.69
44	WP8566022		Knob, Timer   (Replaces: 8566022)				$ 63.41
45	WP8566018		Dial, Timer   (Replaces: 8566018)				$ 51.04
46	8565944		Knob, Control				$ 25.10
47	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
48	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.97
49	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
50	WP8565954		Cap, End (r.h.) (includes Item 40)   (Replaces: 8565954)				$ 62.70
51	8314879		Shield, Inlet Valve		Appelez-nous	-
52	W10066870		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-
53	WPW10096921		Bucket, Drain Hose (left Half)   (Replaces: 8541669)			Immediately	$ 67.38
54	WPW10096921		Bucket, Drain Hose (right Half)   (Replaces: 8541658)			Immediately	$ 67.38
