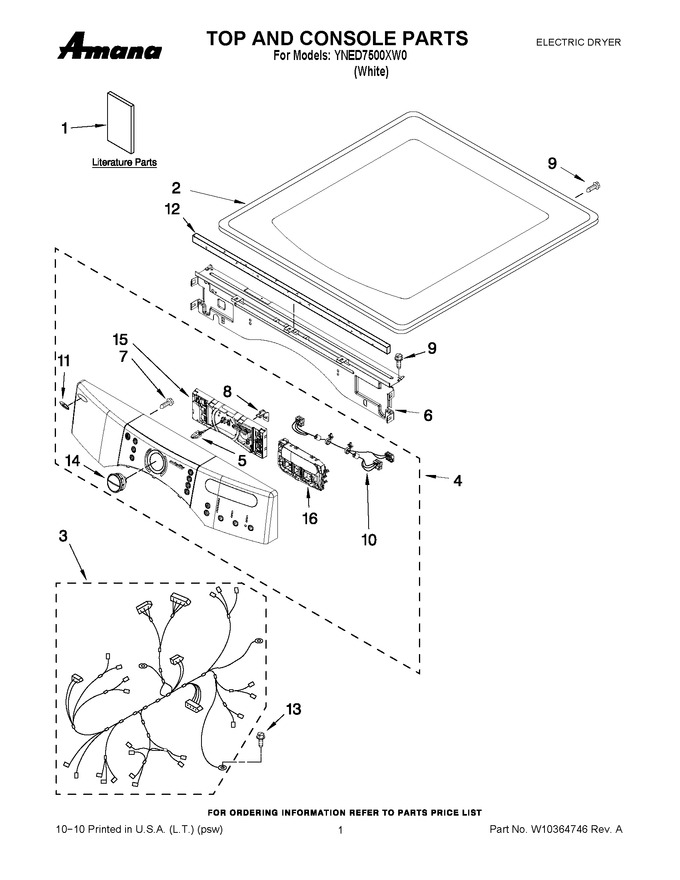

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10239303 | Use & Care Guide |
|
- | |||||
| 1 | W10298850 | Tech Sheet |
|
- | |||||
| 1 | W10255469 | Installation, Diagnostic Guide |
|
- | |||||
| 2 | 3980634 | Top |
|
- | |||||
| 3 | W10111064 | Harness, Main |
|
$ 227.44 | |||||
| 4 | WPW10246704 | Panel, Console (includes Buttons, Control Board & Item. 11 ) (Replaces: W10246704) |
|
$ 425.38 | |||||
| 5 | W10023220 | Adapter, Encoder Wheel |
|
- | |||||
| 6 | W10215656 | Bracket, Console (include, Item. 12 ) |
|
$ 72.06 | |||||
| 7 | W10006580 | Screw, Rotary Knob |
|
- | |||||
| 8 | W10112268 | Clip, Harness |
|
- | |||||
| 9 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 10 | W10242905 | Harness, Communication |
|
- | |||||
| 11 | W10216285 | Medallion |
|
$ 45.29 | |||||
| 12 | W10112267 | Foam-seal (motor) |
|
$ 97.53 | |||||
| 13 | WP693995 | Screw, Ground (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 14 | W10216289 | Knob, Assembly |
|
- | |||||
| 15 | W10280455 | User-interface Center (include, Item. 5 ) |
|
- | |||||
| 16 | W10280652 | User-interface Right |
|
- |
