SELECT A DIAGRAM

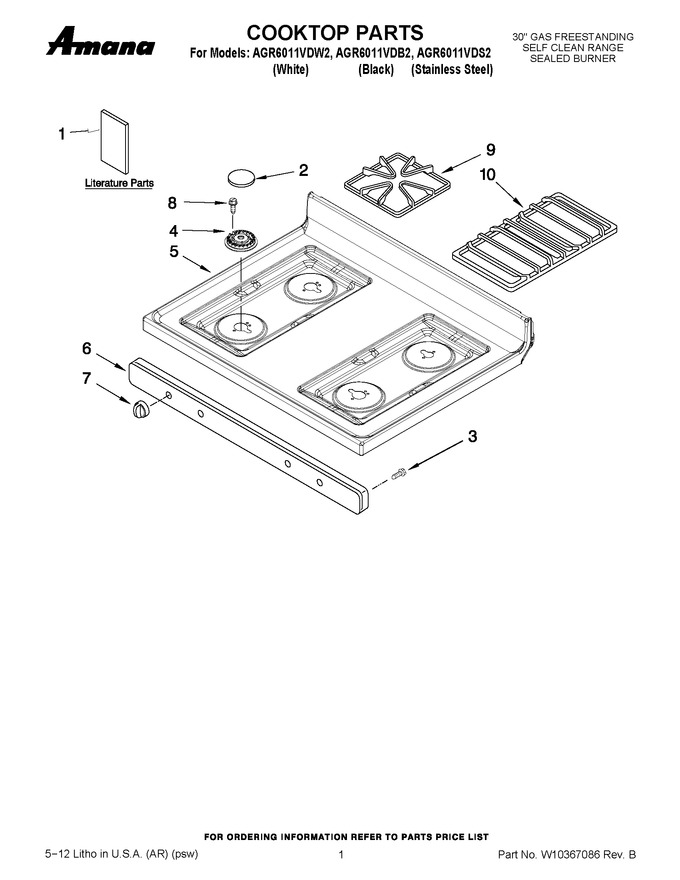

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Drawer & Broiler Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9762761		Anti-tip Template (safer Cooking Tips)		Appelez-nous	-
1	W10196154		Use & Care Guide		Appelez-nous	-
1	W10198636		Tech Sheet		Appelez-nous	-
1	W10196161		Installation Instructions		Appelez-nous	-
1	9757142		Anti-tip Template (english/spanish)		Appelez-nous	-
1	9757143		Anti-tip Template (english/french)		Appelez-nous	-
2	WPW10170554		Cap, Burner (black)   (Replaces: W10170554)				$ 140.26
2	WPW10165809		Cap, Burner (wetstone)   (Replaces: W10165809)				$ 138.32
3	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
4	WPW10406797		Burner (lf (12k))   (Replaces: W10406797)				$ 92.91
4	WPW10406243		Burner (rr(6k))   (Replaces: W10406243)			Immediately	$ 39.08
4	WPW10406283		Burner (lr - Rf(9k))   (Replaces: W10406283)				$ 78.02
5	8272251		Cooktop (white)		Appelez-nous	-
5	8272253		Cooktop (black)		Appelez-nous	-
6	8523855		Panel, Manifold (black)				$ 176.18
6	WP8523854		Panel, Manifold (white)   (Replaces: 8523854)				$ 290.58
7	WPW10163287		Knob, Control (white)   (Replaces: W10163287)				$ 24.16
7	W11190817		Knob, Control (black)   (Replaces: W10163288)		Appelez-nous	-
8	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
9	WPW10447925		Set, Grate (kit Of 4) (black)   (Replaces: 8522858)			Immediately	$ 299.55
9	WPW10447925		Set, Grate (kit Of 4) (wetstone)   (Replaces: W10166295)			Immediately	$ 299.55
10	W10165812		Grate, Center (wetstone)		Appelez-nous	-
10	8522854		Grate, Center (black)				$ 85.43

    View Diagram in Separate Window       Print Part List
