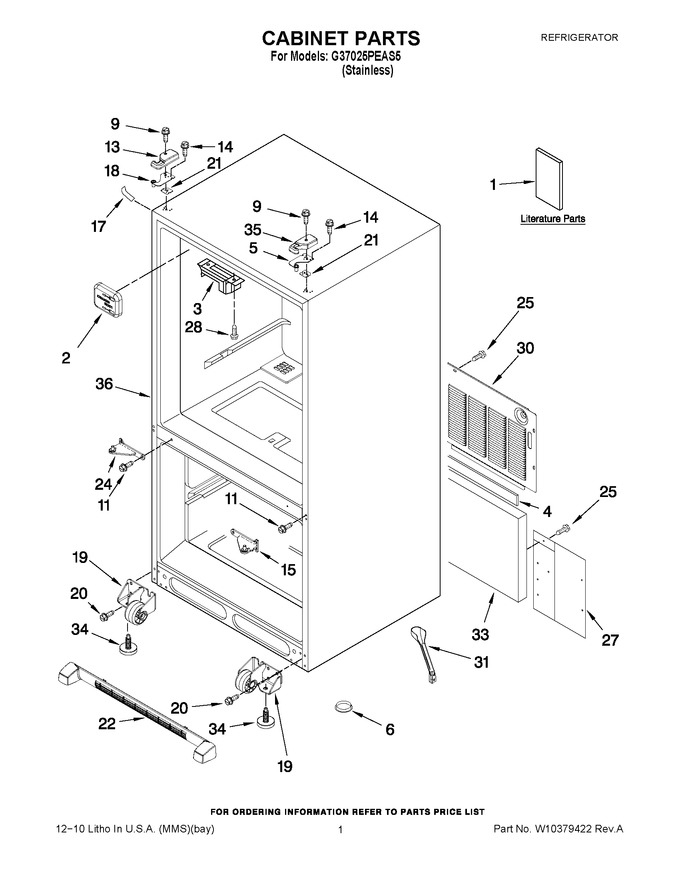

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12828189SP		Owners Manual		Appelez-nous	-
1	W10308620		Tech Sheet		Appelez-nous	-
2	WP67001098		Cover, Fill Tube   (Replaces: 12477501)				$ 7.59
3	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 7.39
4	B5759655		Gasket				$ 11.73
5	WP12566606ED		Hinge, Top Right   (Replaces: 12566606ED)			Immediately	$ 42.42
6	A3076901		Plug, Button				$ 5.70
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 6.80
11	W11573362		Screw (6)   (Replaces: 12992201)				$ 13.25
13	W10177767		Cover, Left Hinge (black)				$ 20.10
14	WP489349		Screw (6)   (Replaces: 12992403)			Immediately	$ 7.59
15	W10918164		Hinge, Center (rt) (black)   (Replaces: 13000008ED)				$ 82.38
17	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 19.93
18	WP12566607ED		Hinge, Top Left   (Replaces: 12566607ED)				$ 81.98
19	W11820444		Roller Assy. (left)   (Replaces: W10275850)			Immediately	$ 33.62
19	W11820445		Roller Assy. (right)   (Replaces: W10275849)			Immediately	$ 33.62
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 7.34
21	12579702		Shim, Hinge		Appelez-nous	-
22	WPW10534153		Grille, Toe (black)   (Replaces: W10244561)				$ 139.11
24	W10918164		Hinge, Center (lt) (black)   (Replaces: 13000007ED)				$ 82.38
25	67006425		Screw (10)   (Replaces: 12990511)			Immediately	$ 6.57
27	W11684617		Cover, Water Valve   (Replaces: W10217701)				$ 19.22
28	WP7101P126-60		Screw (2)   (Replaces: 12990303)			Immediately	$ 7.52
30	W10212541		Cover, Unit		Appelez-nous	-
31	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 41.61
33	12820505		Insulation, Sound				$ 71.70
34	WPW10141622		Foot, Brake   (Replaces: W10141622)			Immediately	$ 7.42
35	12684202B		Cover, Right Hinge (black)		Appelez-nous	-
36	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
