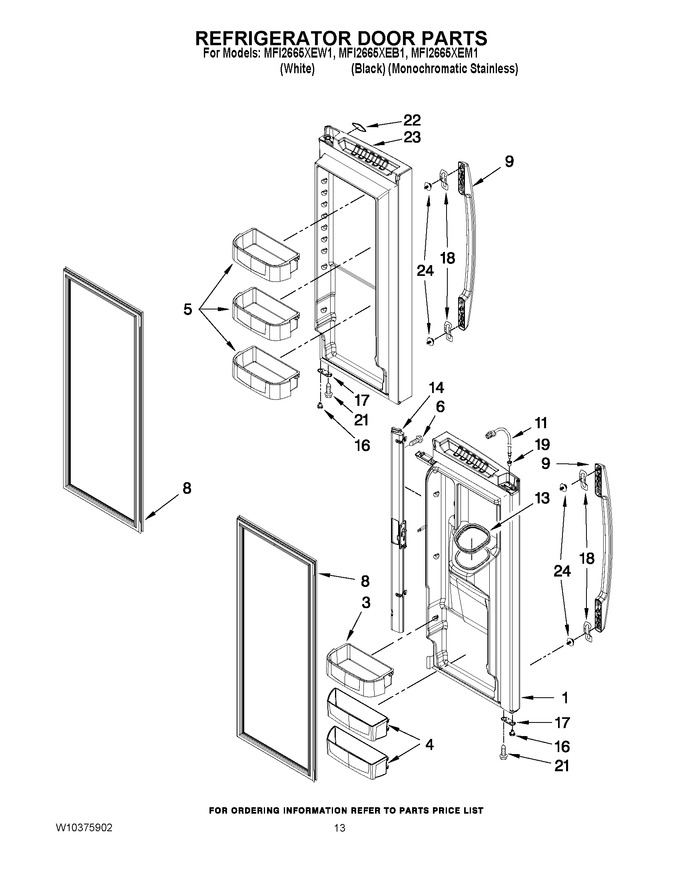

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107303W		Door, Left (white)		Appelez-nous	-
1	13107305S		Door, Left (stainless)		Appelez-nous	-
1	13107303B		Door, Left (black)		Appelez-nous	-
3	W10290553		Bucket, Upper		Appelez-nous	-
4	W10297151		Bucket, Lower		Appelez-nous	-
5	WP12840004		Bucket, Gallon   (Replaces: 12840004)				$ 90.37
6	W11311945		Screw   (Replaces: 12990204)				$ 14.02
8	W11396037		Gasket, Door (white)   (Replaces: W10163896)				$ 297.77
8	W10830055		Gasket, Door (stainless)   (Replaces: W10163991)			Immediately	$ 229.10
8	W11378944		Gasket, Door (black)   (Replaces: W10163898)			Immediately	$ 187.59
9	W10252285		Handle, Door (black)		Appelez-nous	-
9	WPW10252284A		Handle, Door (white)   (Replaces: W10252284)				$ 72.65
9	W10252288A		Handle, Door (stainless)   (Replaces: W10252288)				$ 123.68
11	W10296451		Waterline, Door				$ 53.54
13	WPW10287601		Seal, Ice Chute   (Replaces: W10287601)			Immediately	$ 31.20
14	12722815B		Mullion, Door (black)				$ 289.26
14	WP12722815AP		Mullion, Door (stainless)   (Replaces: 12722815AP)				$ 321.91
14	WP12722815W		Mullion, Door (white)   (Replaces: 12722815W)				$ 322.63
16	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 86.02
16	WP12028505AP		Closure, Door (stainless)   (Replaces: 12028505AP)			Immediately	$ 61.46
16	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 7.76
17	12968202W		Stop, Door (white)				$ 65.99
17	W11703060		Stop, Door (stainless)   (Replaces: 12968202AP)				$ 14.72
17	W11708403		Stop, Door (black)   (Replaces: 12968202B)			Immediately	$ 14.05
18	WP2255411		Clip, Handle   (Replaces: 2255411)				$ 34.81
19	12996601		Clip, Bushing Wire (left Door)				$ 10.05
21	WP98165		Screw   (Replaces: 12990521)				$ 8.00
22	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 67.14
23	13107304W		Door, Right (white)		Appelez-nous	-
23	13107306S		Door, Right (stainless)		Appelez-nous	-
23	13107304B		Door, Right (black)		Appelez-nous	-
24	WP12992902		Screw, Handle (shoulder)   (Replaces: 12992902)				$ 11.07

    View Diagram in Separate Window       Print Part List
