SELECT A DIAGRAM

01 - Door And Panel Parts

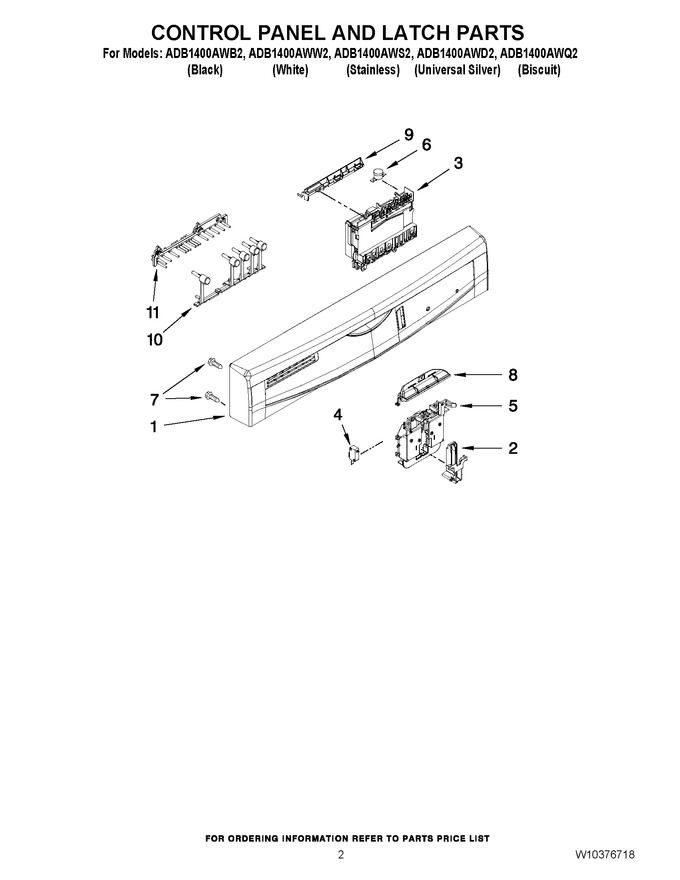

02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10310509		Console Asm. (includes Active Overlay & Insert) (white)		Appelez-nous	-
1	W10310510		Console Asm. (includes Active Overlay & Insert) (biscuit)		Appelez-nous	-
1	W10310508		Console Asm. (includes Active Overlay & Insert) (black)		Appelez-nous	-
2	WP8524471		Actuator, Latch   (Replaces: 8524471)			Immediately	$ 101.28
3	W10319897		Control Electronic		Appelez-nous	-
4	WPW10274880		Switch, Door   (Replaces: W10274880)			Immediately	$ 82.89
5	WPW10274884		Latch Assembly   (Replaces: W10274884)			Immediately	$ 86.34
6	W10402110		Bi-metal   (Replaces: W10195528)			Immediately	$ 33.34
7	WP3400412		Screw   (Replaces: 3400412)			Immediately	$ 7.94
8	WP8269323		Handle, Latch (biscuit)   (Replaces: 8269326)				$ 132.27
8	WP8269323		Handle, Latch (black)   (Replaces: 8269323)				$ 132.27
8	WP8269323		Handle, Latch (white)   (Replaces: 8269324)				$ 132.27
9	WPW10372484		Brace, Control   (Replaces: W10195284)				$ 23.37
10	W10274843		Tree, Button		Appelez-nous	-
11	W10274837		Pipe, Light				$ 21.08

    View Diagram in Separate Window       Print Part List
