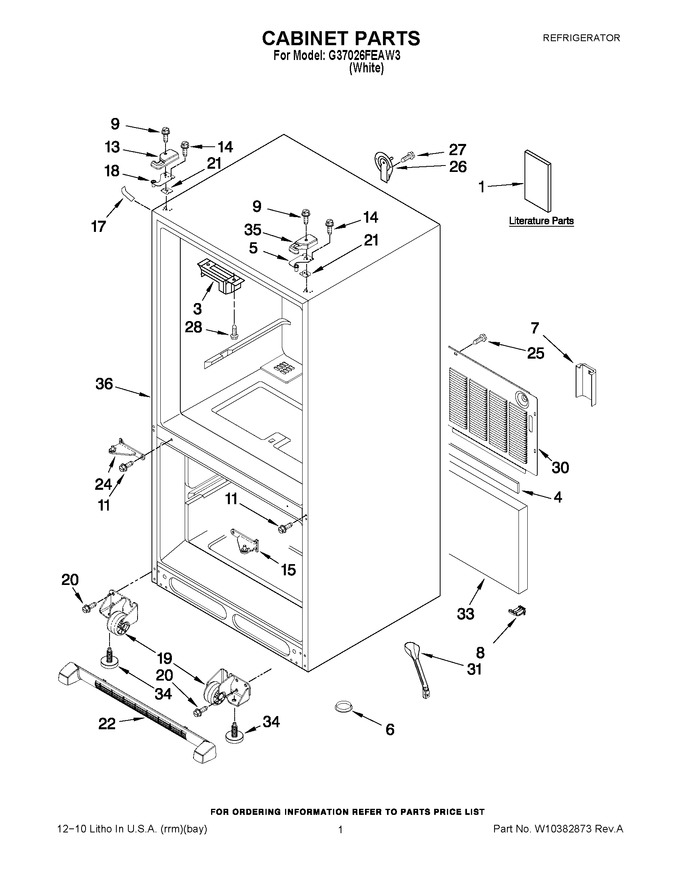

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12828189SP | Owners Manual |
|
- | |||||
| 1 | W10308620 | Tech Sheet |
|
- | |||||
| 3 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.39 | ||||
| 4 | B5759655 | Gasket |
|
$ 11.73 | |||||
| 5 | WP12566606ED | Hinge, Top Right (Replaces: 12566606ED) |
|
Immediately | $ 42.42 | ||||
| 6 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 7 | W10208592 | Guard, Water Valve |
|
- | |||||
| 8 | W10216614 | Sweep, Water Valve |
|
$ 18.51 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 11 | W11573362 | Screw (6) (Replaces: 12992201) |
|
$ 13.25 | |||||
| 13 | 12684201WSP | Cover, Left Hinge (white) |
|
- | |||||
| 14 | WP489349 | Screw (6) (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | 13000002WD | Hinge, Center (rt) (white) |
|
$ 144.89 | |||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 20.61 | |||||
| 18 | WP12566607ED | Hinge, Top Left (Replaces: 12566607ED) |
|
$ 81.98 | |||||
| 19 | W11820444 | Roller Assy. (left) (Replaces: W10275850) |
|
Immediately | $ 33.62 | ||||
| 19 | W11820445 | Roller Assy. (right) (Replaces: W10275849) |
|
Immediately | $ 33.62 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 7.34 | ||||
| 21 | 12579702 | Shim, Hinge |
|
- | |||||
| 22 | WPW10534154 | Grille, Toe (white) (Replaces: W10244559) |
|
$ 138.29 | |||||
| 24 | W10918113 | Hinge, Center (lt) (white) (Replaces: 13000001WD) |
|
$ 88.13 | |||||
| 25 | 67006425 | Screw (10) (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 26 | 12726003 | Cover, Water Line |
|
$ 17.27 | |||||
| 27 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 28 | WP7101P126-60 | Screw (2) (Replaces: 12990303) |
|
Immediately | $ 7.52 | ||||
| 30 | W10212541 | Cover, Unit |
|
- | |||||
| 31 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 41.61 | ||||
| 33 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 34 | WPW10141622 | Foot, Brake (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 35 | 12684202W | Cover, Right Hinge (white) |
|
- | |||||
| 35 | 12684202B | Cover, Right Hinge (black) |
|
- | |||||
| 36 | N/P | Cabinet (not A Servicable Part) |
|
- |
