SELECT A DIAGRAM

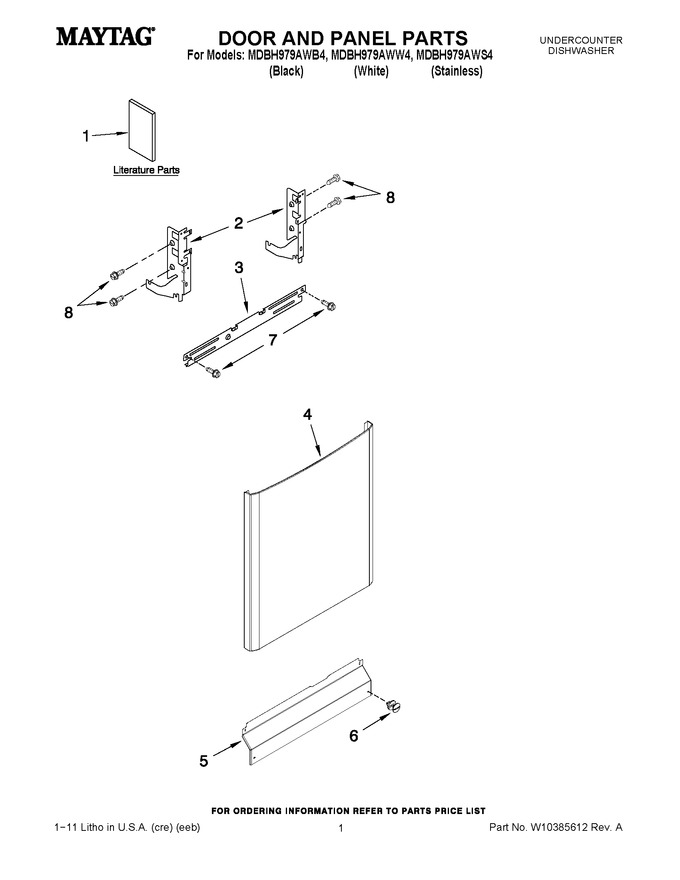

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10142800		Tech Sheet		Appelez-nous	-
1	W10284980		Instructions, Installation		Appelez-nous	-
1	W10300260		Energy Guide		Appelez-nous	-
1	W10255114		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10255115		Guide, Use & Care Spanish		Appelez-nous	-
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
3	8268983		Stiffener, Door				$ 38.77
4	W10199759		Panel Front (white)				$ 128.31
4	W10199761		Panel Front (stainless)				$ 157.37
4	W10199758		Panel Front (black)				$ 128.78
5	W11763736		Access Panel (black)   (Replaces: W10237243)			Immediately	$ 42.25
5	WPW10441007		Access Panel (white)   (Replaces: W10237242)				$ 170.94
6	WPW10503548		Screw (black)   (Replaces: W10331789)			Immediately	$ 30.39
6	WPW10503549		Screw (white)   (Replaces: W10331793)			Immediately	$ 7.77
7	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
8	WP3400071		Screw   (Replaces: 3400071)				$ 8.26

    View Diagram in Separate Window       Print Part List
