New Model Search:

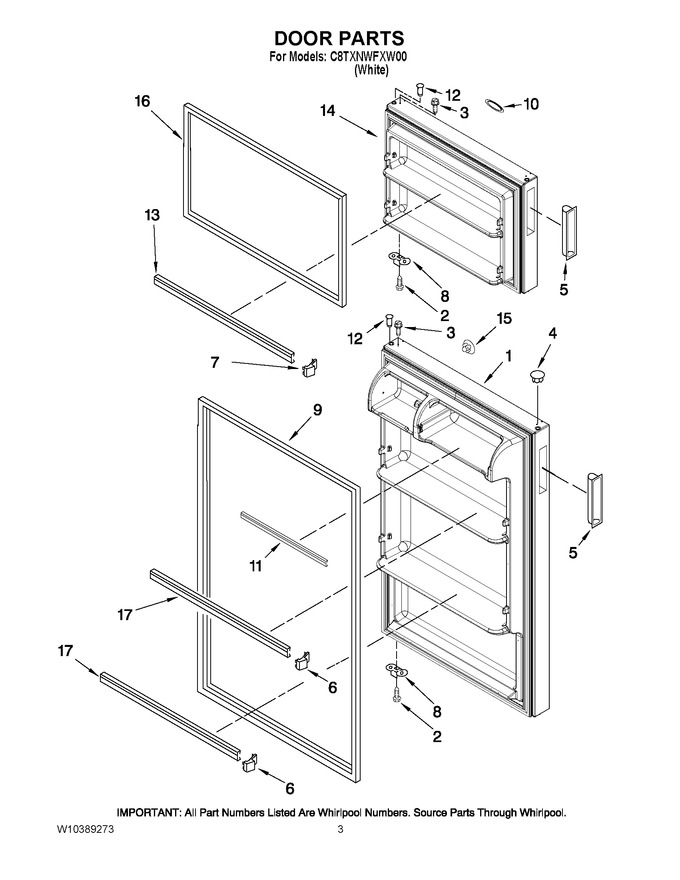

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10287921 | Refrigerator Door (includes 9 & 12) (white) |
|
- | |||||
| 2 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 3 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 4 | WP2212648 | Hole Plug (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 5 | WP984493 | Handle, Snap-in (Replaces: 984493) |
|
$ 114.49 | |||||
| 6 | WP2195916K | Plug-trim (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 7 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 8 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 9 | WP2319264T | Door Gasket, Magnetic (Replaces: W10190032) |
|
Immediately | $ 215.51 | ||||
| 10 | 2326131 | Nameplate |
|
- | |||||
| 11 | W11129820 | Trim, Door Shelf (Replaces: W10234242) |
|
Immediately | $ 127.34 | ||||
| 12 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 8.14 | |||||
| 13 | WP2266727 | Trim-door (Replaces: 2266727) |
|
Immediately | $ 120.57 | ||||
| 14 | 2316343W | Freezer Door (includes 12 & 16) (white) |
|
- | |||||
| 15 | WP2189000 | Hole Plug, Handle (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 16 | WP2319263T | Door Gasket, Magnetic (Replaces: W10190031) |
|
Immediately | $ 215.86 | ||||
| 17 | WP2266738 | Trim, Door Shelf (Replaces: 2266738) |
|
$ 111.69 |
