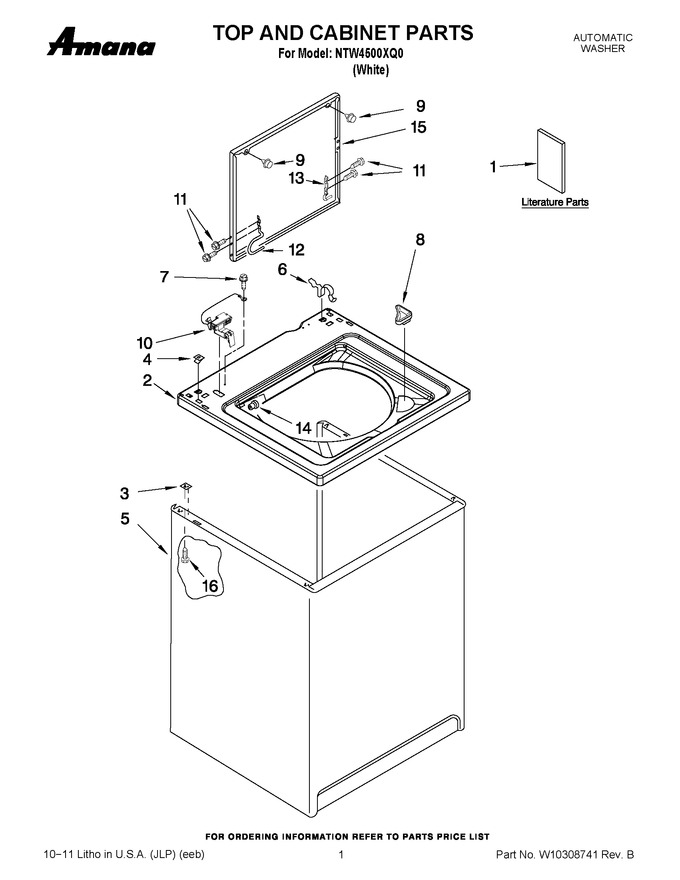

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Brake And Drive Tube Parts


07 - Gearcase Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10347262		Use & Care Guide (english/french)		Appelez-nous	-
1	W10457449		Use & Care Guide (energy Guide)		Appelez-nous	-
1	W10362939		Use & Care Guide (wiring Diagram)		Appelez-nous	-
1	W10368957		Use & Care Guide (spanish)		Appelez-nous	-
1	W10200890		Installation Instructions (english)		Appelez-nous	-
1	W10200891		Installation Instructions (spanish)		Appelez-nous	-
2	8318064		Top				$ 135.68
3	WP62750		Spacer, Cabinet To Top   (Replaces: 62750)			Immediately	$ 8.07
4	WP357213		Nut, Push-in   (Replaces: 357213)				$ 7.76
5	63424		Cabinet				$ 388.52
6	WP62780		Clip, Top & Cabinet & Rear Panel   (Replaces: 62780)			Immediately	$ 8.19
7	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 7.30
8	WP3362952		Dispenser, Bleach   (Replaces: 3362952)			Immediately	$ 12.09
9	WP9724509		Bumper, Lid   (Replaces: 9724509)			Immediately	$ 8.33
10	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 39.82
11	WPW10119828		Screw, Lid Hinge   (Replaces: W10119828)			Immediately	$ 7.55
12	W10225135		Hinge, Lid (l.h.)				$ 24.35
13	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 28.82
14	WP21258		Bearing, Lid Hinge   (Replaces: 21258)				$ 8.01
15	WPW10193857		Lid   (Replaces: 8541774)				$ 374.55
16	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 8.25
