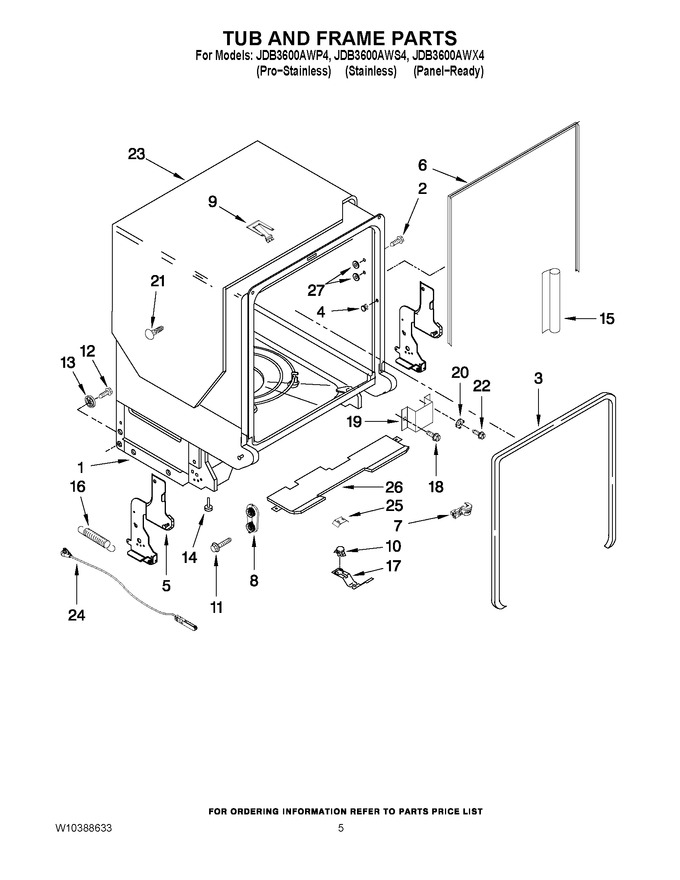

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319023 | Tub Assembly |
|
- | |||||
| 2 | WPW10348407 | Screw (Replaces: 3400072) |
|
$ 8.06 | |||||
| 3 | W11196317 | Door Seal (Replaces: W10112096) |
|
Immediately | $ 113.24 | ||||
| 4 | W10795980 | Plug Tub (Replaces: W10082838) |
|
Immediately | $ 15.06 | ||||
| 5 | W10185368 | Bracket,hinge Asm |
|
- | |||||
| 6 | W10864081 | Seal, Cabinet (Replaces: W10179427) |
|
Immediately | $ 84.31 | ||||
| 7 | W11384788 | Strain Relief (Replaces: 8573061) |
|
$ 22.59 | |||||
| 8 | WPW10084086 | Balance, Door (Replaces: W10084086) |
|
Immediately | $ 33.02 | ||||
| 9 | W10317686 | Strike, Latch |
|
$ 43.82 | |||||
| 10 | WP661566 | Thermostat (Replaces: 661566) |
|
Immediately | $ 31.28 | ||||
| 11 | WP3400074 | Screw (2) (Replaces: 3400074) |
|
$ 7.55 | |||||
| 12 | 3370389 | Screw (2) |
|
$ 5.70 | |||||
| 13 | WP8268977 | Wheel Leg (Replaces: 8268977) |
|
$ 15.19 | |||||
| 14 | 8193716 | Leveler, Leg (Replaces: 8524584) |
|
Immediately | $ 88.96 | ||||
| 15 | 8574123 | Barrier,moisture |
|
$ 71.34 | |||||
| 16 | WP8270182 | Spring, Door Balance (Replaces: 8270182) |
|
Immediately | $ 40.32 | ||||
| 17 | 9742648 | Bracket, Thermostat |
|
$ 51.51 | |||||
| 18 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 19 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 29.53 | |||||
| 20 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 11.81 | |||||
| 21 | WP304666 | Retainer, Push (2) (Replaces: 304666) |
|
$ 29.45 | |||||
| 22 | WP3400014 | Screw (Replaces: 3400014) |
|
$ 8.24 | |||||
| 23 | W10877094 | Shield, Sound Tub (Replaces: 8573239) |
|
$ 233.63 | |||||
| 24 | 8194001 | Door Cable Assy (Replaces: W10158291) |
|
Immediately | $ 43.06 | ||||
| 25 | W10321574 | Shield, Thermostat |
|
$ 25.83 | |||||
| 26 | W11747584 | Insulation,bottom (Replaces: W10195367) |
|
Immediately | $ 28.63 | ||||
| 27 | 974302 | Gasket, Brkt,mtg |
|
- |
