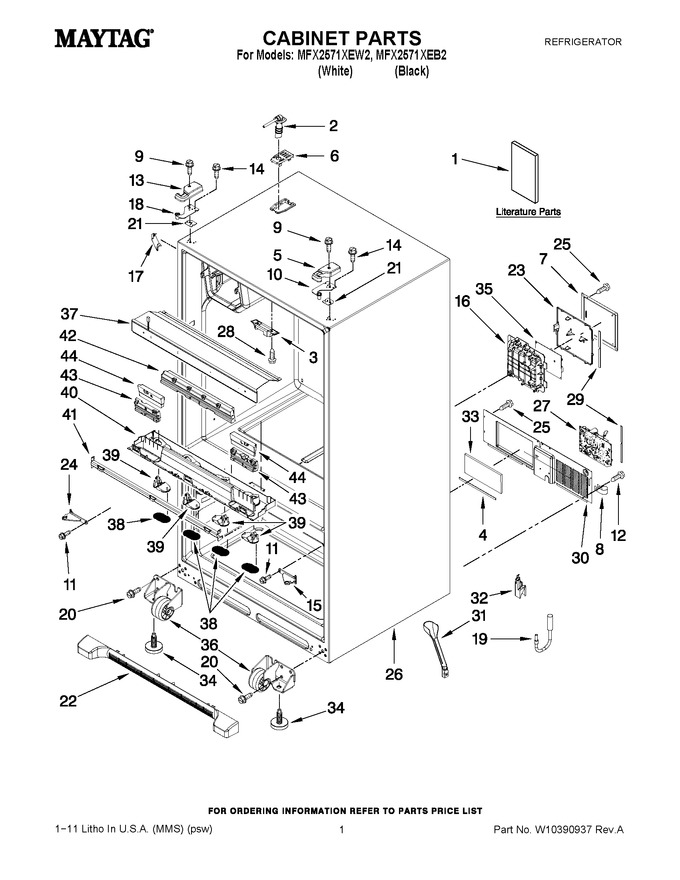

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10341191		Tech Sheet		Appelez-nous	-
1	W10295091		Guide, Energy		Appelez-nous	-
1	W10336158		Use & Care Guide		Appelez-nous	-
2	W11415785		Tube W/waterline, Fill-im   (Replaces: 12961401)			Immediately	$ 62.39
3	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 8.21
4	B5759655		Gasket, Mc Back				$ 13.03
5	WP67005956		Cover, Top Hinge (right) (black)   (Replaces: 12962302B)				$ 22.54
5	67005958		Cover, Top Hinge (right) (white)   (Replaces: 12962302W)				$ 21.57
6	12981401B		Cover, Fill Tube (black)				$ 13.25
6	12981401W		Cover, Fill Tube (white)				$ 13.25
7	12961602		Cover, Control Box				$ 116.19
8	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 22.40
9	WP8281196		Screw, Hinge Cover   (Replaces: 12992602)			Immediately	$ 7.55
10	W11592374		Hinge, Top Right   (Replaces: 12963205ED)			Immediately	$ 31.90
11	WPW10109200		Screw, Center Hinge   (Replaces: 489470)			Immediately	$ 8.80
12	67006425		Screw (3)   (Replaces: 12990511)			Immediately	$ 7.30
13	WPW10337634		Cover, Top Hinge (left) (white)   (Replaces: 12962301W)			Immediately	$ 23.54
13	W10337647		Cover, Top Hinge (left) (black)   (Replaces: 12962301B)			Immediately	$ 23.33
14	WP489349		Screw, Top Hinge   (Replaces: 12992403)			Immediately	$ 8.43
15	13000002WD		Hinge, Center (rt) (white)				$ 160.99
15	W10918164		Hinge, Center (rt) (black)   (Replaces: 13000008ED)				$ 91.53
16	W10285271		Box, Hv Control				$ 53.69
17	12587703W		Cover, Corner (2) (white)				$ 22.90
17	67003485		Cover, Corner (2) (black)   (Replaces: 12587703B)			Immediately	$ 22.14
18	W11592375		Hinge, Top Left   (Replaces: 12963204ED)				$ 31.92
19	W10349052		Waterline-househld				$ 78.91
20	67006564		Screw (8)   (Replaces: 12991302)			Immediately	$ 8.15
21	12999502		Shim, Top Hinge (right)				$ 100.60
21	12999501		Shim, Top Hinge (left)				$ 99.53
22	WPW10534154		Grille, Toe (white)   (Replaces: W10244559)				$ 153.66
22	WPW10534153		Grille, Toe (black)   (Replaces: W10244561)				$ 154.57
23	W11226688		Lid, Hv Control   (Replaces: 12957702K)				$ 85.16
24	W10918164		Hinge, Center (lt) (black)   (Replaces: 13000007ED)				$ 91.53
24	W10918113		Hinge, Center (lt) (white)   (Replaces: 13000001WD)				$ 97.92
25	W11686675		Screw, Cover   (Replaces: 12990702)				$ 14.27
26	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
27	WPW10226427		Power Supply Modul   (Replaces: W10226427)			Immediately	$ 351.93
28	W10854958		Screw, Block   (Replaces: 12990302)				$ 7.90
29	12957801K		Gasket-hv Cntrl-2		Appelez-nous	-
30	WPW10270394		Cover, Mc Back   (Replaces: W10270394)				$ 208.73
31	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
32	W10236761		Cover, Water Valve				$ 16.11
33	12820505		Fiber, Acoustic				$ 71.70
34	WPW10141622		Brake, Foot   (Replaces: W10141622)			Immediately	$ 8.24
35	W10285198		Board, Hv Control				$ 294.89
36	W11820444		Roller Assembly (left)   (Replaces: W10275850)			Immediately	$ 37.35
36	W11820445		Roller Assembly (right)   (Replaces: W10275849)			Immediately	$ 37.35
37	W10296395		Mullion-incl.heatr (black)		Appelez-nous	-
37	W10296390		Mullion-incl.heatr (white)		Appelez-nous	-
38	W10237349		Lens-ice Box Cover		Appelez-nous	-
39	W10679370		Module Led Lights   (Replaces: W10320778)				$ 142.75
40	W10311719		Housing-module		Appelez-nous	-
41	W10323211		Brace-mullion				$ 119.55
42	W10311721		Eps Spacer Block		Appelez-nous	-
43	W10316401		Spacer Wedge-l & R		Appelez-nous	-
44	W11697528		Spacer Wedge L & R   (Replaces: W10316403)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
