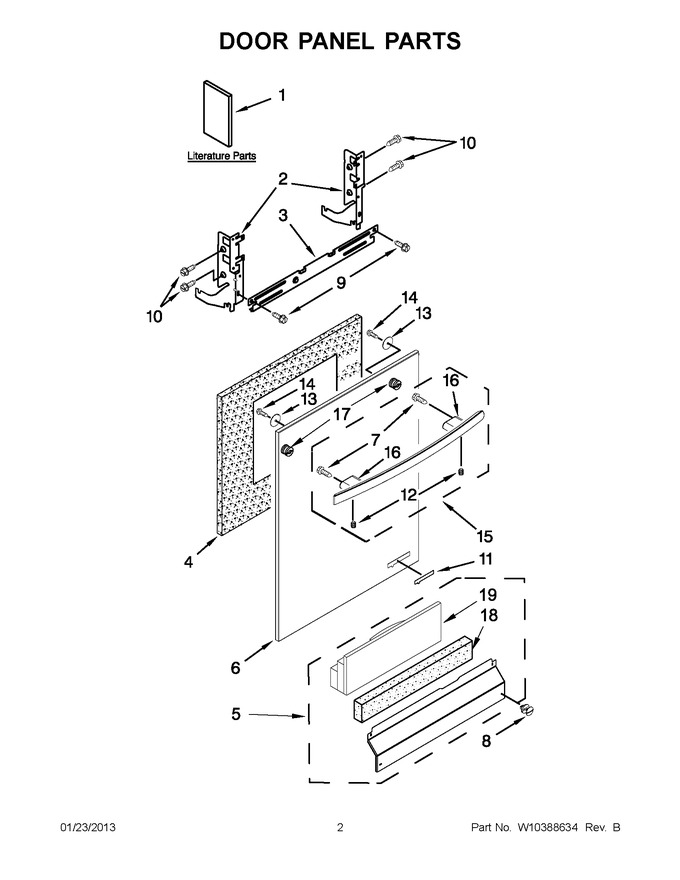

01 - Door Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10158347		Tech Sheet (french)		Appelez-nous	-
1	W10321619		Instructions, Installation		Appelez-nous	-
1	W10311174		Energy Guide		Appelez-nous	-
1	W10300216		Use & Care Guide (english/french)		Appelez-nous	-
1	W10300217		Use & Care Guide (spanish)		Appelez-nous	-
1	W10142826		Tech Sheet (english)		Appelez-nous	-
2	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	8268983		Brace, Door Cross				$ 38.77
4	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
5	WPW10526115		Access Panel (incl.insulation) (white)   (Replaces: W10368716)				$ 175.17
5	WPW10526114		Access Panel (incl.insulation) (black)   (Replaces: W10368715)			Immediately	$ 181.97
6	W10056411		Panel, Full Front (includes Items 4, 11, 12, 13, 14 & 17) (white)				$ 201.35
6	W10056410		Panel, Full Front (includes Items 4, 11, 12, 13, 14 & 17) (black)				$ 210.64
6	W10056290		Panel, Full Front (includes Items 4, 11, 12, 13, 14 & 17) (oiled Bronze)				$ 179.98
7	W10267047		Screw   (Replaces: W10201588)				$ 13.47
8	WPW10503549		Fastener (white)   (Replaces: W10331793)			Immediately	$ 7.77
8	WPW10503548		Fastener (black)   (Replaces: W10331789)			Immediately	$ 30.39
9	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
10	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
11	W10190723		Nameplate (white)				$ 111.95
11	WPW10214168		Nameplate (black)   (Replaces: W10190724)				$ 85.95
11	W10214169		Nameplate (oiled Bronze)				$ 53.42
12	W10276608		Screw, Set				$ 46.73
13	W10142904		Plate, Backing				$ 50.57
14	W10123421		Screw				$ 12.83
15	W10234541A		Handle (includes 7, 12 & 16) (white)   (Replaces: W10234541)				$ 75.62
15	W10208771		Handle (includes 7, 12 & 16) (black )		Appelez-nous	-
15	W10208770		Handle (includes 7, 12 & 16) (oiled Bronze)		Appelez-nous	-
16	W10056381		Standoff Left Hand (oiled Bronze)		Appelez-nous	-
16	W10275186		Standoff Left Hand (black)		Appelez-nous	-
16	W10275187		Standoff Left Hand (white)		Appelez-nous	-
16	W10253600		Standoff Right Hand (white)		Appelez-nous	-
16	W10253599		Standoff Right Hand (black)		Appelez-nous	-
16	W10056380		Standoff Right Hand (oiled Bronze)		Appelez-nous	-
17	WP8564951		Stud, Mounting (for Non-glass Front)   (Replaces: 8564951)			Immediately	$ 19.33
17	W10208695		Stud, Mounting (for Glass Front)				$ 22.56
18	W10831329		Insulation, Toe Panel   (Replaces: W10385107)			Immediately	$ 43.30
19	W10831329		Insulation, Three Layer   (Replaces: W10350437)			Immediately	$ 43.30
