Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11726965 Dishrack, Lower   (Replaces: W10525649) Special Order $ 191.23

2 W10311151 Lid, Basket (center) Appelez-nous -
3 W10261336 Wheel & Transport Assembly Special Order $ 39.02

4 WPW10311153 Basket, Silverware   (Replaces: W10311153) Special Order $ 175.23

5 WPW10238412 Pivot, Tine Row   (Replaces: W10238412) Special Order $ 14.99

6 WPW10056351 Tine, Row   (Replaces: W10056351) Special Order $ 87.03

7 WPW10238411 Retainer, Tine Row   (Replaces: W10238411) Special Order $ 8.17

8 W10311149 Lid, Basket (right) Appelez-nous -
9 W10311150 Lid, Basket (left) Appelez-nous -

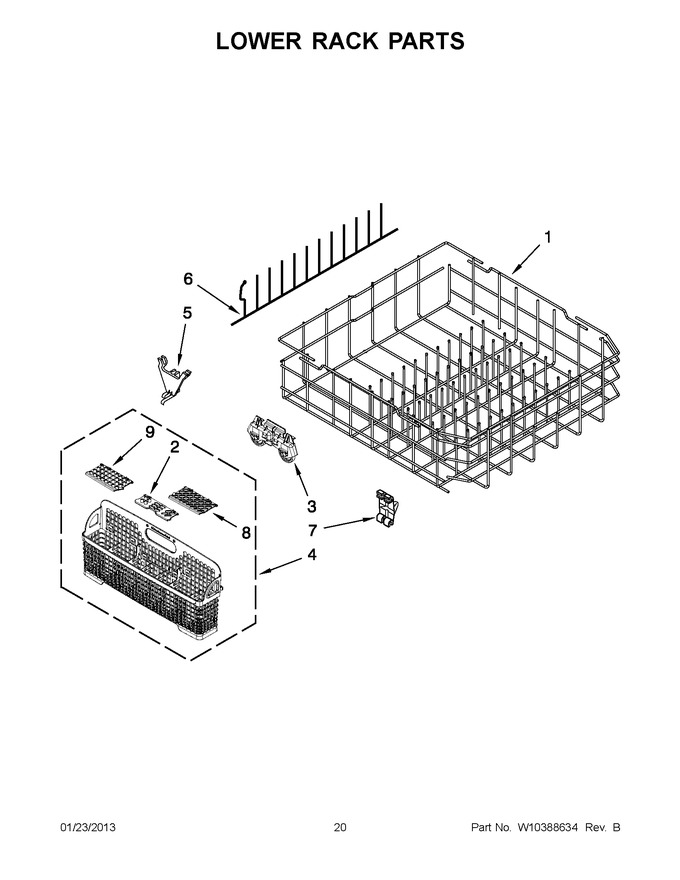

    View Diagram in Separate Window     Print Icon   Print Part List
