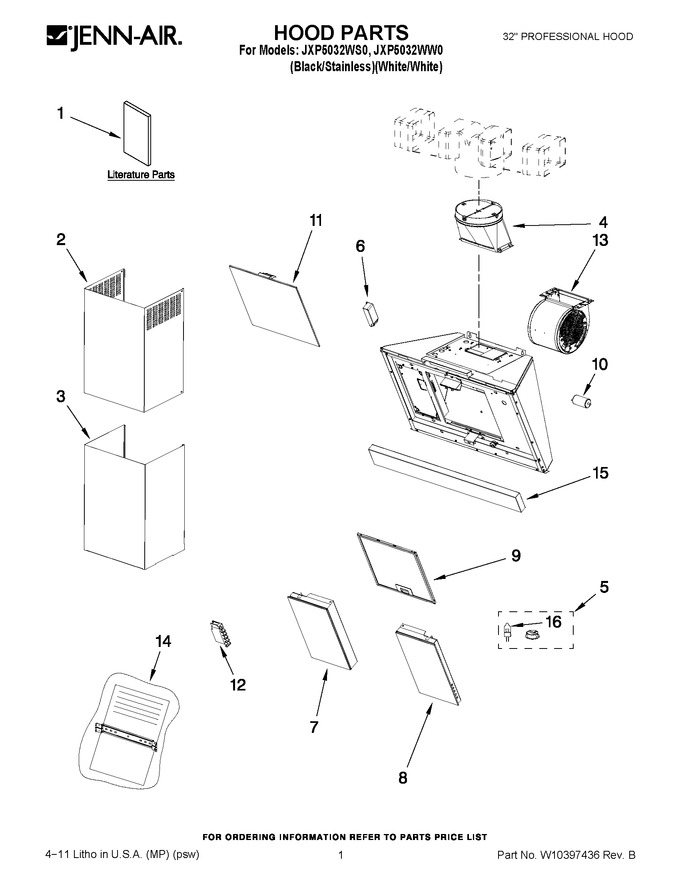

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10274314 | Use & Care Guide |
|
- | |||||
| 2 | W11321566 | Cover, Lower Duct (stainless) (Replaces: W10291599) |
|
$ 400.90 | |||||
| 2 | W10294525 | Cover, Lower Duct (white) |
|
- | |||||
| 3 | W10294505 | Cover, Upper Duct (white) |
|
- | |||||
| 3 | W11321566 | Cover, Upper Duct (stainless) (Replaces: W10291601) |
|
$ 400.90 | |||||
| 4 | W10169956 | Damper Assembly |
|
- | |||||
| 5 | WP8186678 | Bulb Assembly (Replaces: 8186678) |
|
$ 73.21 | |||||
| 6 | W11186486 | Transformer (Replaces: 8186686) |
|
Immediately | $ 229.15 | ||||
| 7 | W10295798 | Panel, Left Front (white) |
|
- | |||||
| 7 | W10295797 | Panel, Left Front (black) |
|
- | |||||
| 8 | W10295799 | Panel, Right Front (black) |
|
- | |||||
| 8 | W10295800 | Panel, Right Front (white) |
|
- | |||||
| 9 | WP8190836 | Filter, Grease (Replaces: 8190836) |
|
Immediately | $ 121.37 | ||||
| 10 | 8186677 | Capacitor |
|
$ 235.77 | |||||
| 11 | W10294507 | Glass, Center (black) |
|
$ 142.12 | |||||
| 11 | W10294519 | Glass, Center (white) |
|
- | |||||
| 12 | W10294522 | Control, Electr. |
|
$ 280.71 | |||||
| 13 | W11106377 | Fan Assembly (Replaces: W10294501) |
|
Immediately | $ 734.65 | ||||
| 14 | W10294526 | Hardware, Install |
|
- | |||||
| 15 | W10295803 | Trim (white) |
|
- | |||||
| 15 | W10295802 | Trim (black) |
|
- | |||||
| 16 | WPW10298151 | Bulb, Halogen (Replaces: W10298151) |
|
Immediately | $ 29.28 |
