View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Unit Parts

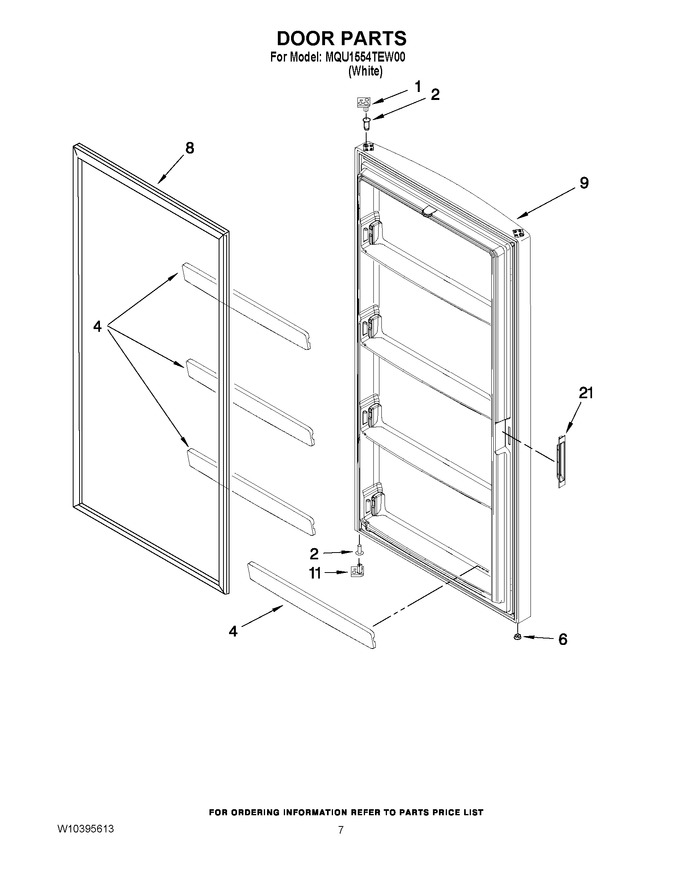

04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10206524 | Stop, Door (top) (white) |
|
$ 32.71 | |||||
| 2 | 4390731 | Hinge, Bushing |
|
$ 19.69 | |||||
| 4 | 4390608 | Rail, Door (5) |
|
$ 45.37 | |||||
| 6 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 11.34 | |||||
| 8 | WP4357099 | Gasket, Door (Replaces: 4357007) |
|
$ 338.88 | |||||
| 9 | W10371963 | Door Assembly (includes Interior Liner) |
|
- | |||||
| 11 | 8210400 | Stop, Door (bottom) (natural) |
|
- | |||||
| 21 | 4-81039-101 | Handle |
|
- |
