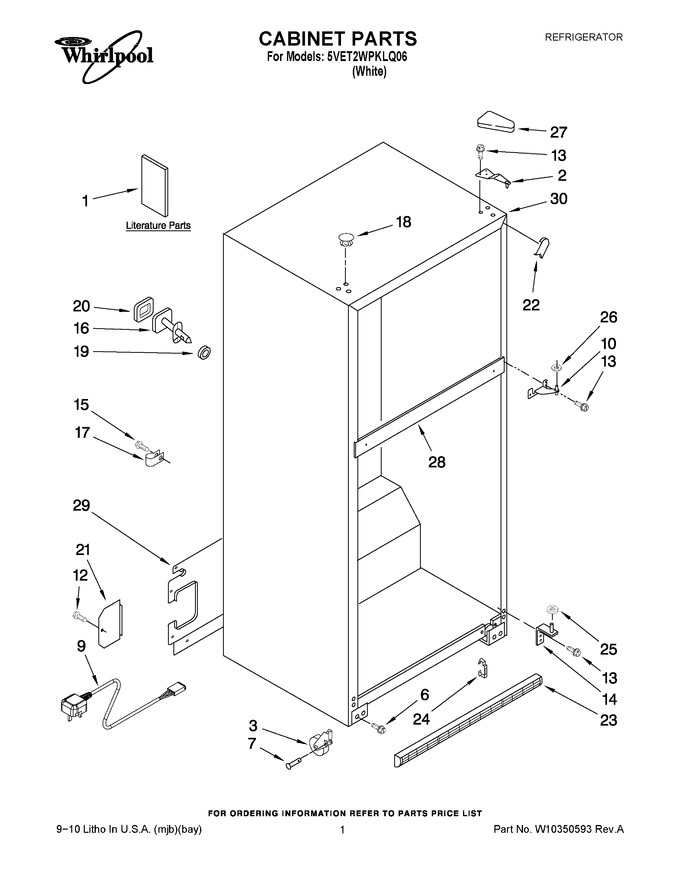

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10142155		Service & Wiring Sheet		Appelez-nous	-
1	2318229		Use & Care Guide		Appelez-nous	-
1	677969		Do-it-yourself Manual Ref./fzr.				$ 30.30
2	WP2261963		Hinge (top)   (Replaces: 2261963)			Immediately	$ 119.42
3	WP2166108		Roller, Front (2) (water Supply Line)   (Replaces: 2166108)			Immediately	$ 34.76
6	WP3400504		Screw   (Replaces: 3400504)				$ 7.55
7	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 19.12
9	W10123575		Cord, Service		Appelez-nous	-
10	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 92.02
12	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
13	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
14	WP2254473		Hinge Butt   (Replaces: 2254473)				$ 9.28
15	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 8.38
16	N/P		Fitting, Water Tube (not Serviced)		Appelez-nous	-
17	489348		Clamp		Appelez-nous	-
18	WP2151652		Hole Plug (6)   (Replaces: 2201012)				$ 22.87
19	N/P		Seal, Front (not Serviced)		Appelez-nous	-
20	N/P		Seal, Rear (not Serviced)		Appelez-nous	-
21	2166251		Cover-valve,water				$ 6.43
22	WPW10283959		Corner Filler (2)   (Replaces: W10283959)				$ 8.21
23	2254313		Grille				$ 41.62
24	2189356		Clip-grille				$ 5.70
25	WP487576		Washer   (Replaces: 487576)			Immediately	$ 10.74
26	WP489467		Washer   (Replaces: 489341)			Immediately	$ 11.42
27	WP2213360		Cover, Hinge   (Replaces: 2213360)				$ 20.19
28	N/P		Rail, Center (not Serviced)		Appelez-nous	-
29	2302358		Cover, Unit				$ 57.60
30	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
