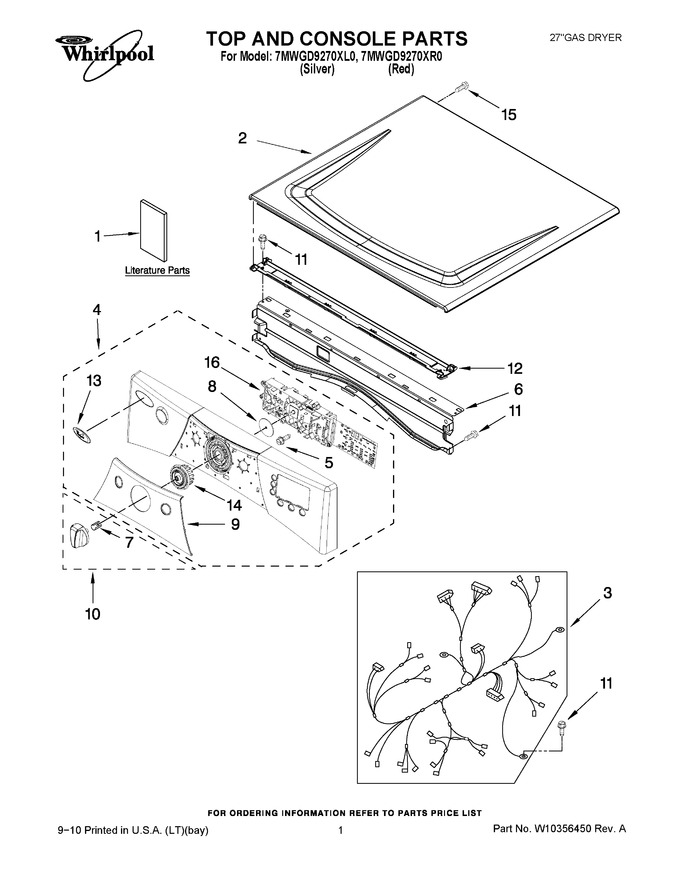

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8576353 Burner Assembly
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10339519 | Use & Care Guide |
|
- | |||||
| 1 | W10294025 | Tech Sheet |
|
- | |||||
| 2 | WPW10336091 | Top (silver) (Replaces: W10251213) |
|
$ 324.93 | |||||
| 2 | W10251212 | Top (red) |
|
- | |||||
| 3 | W10278758 | Harness, Main |
|
- | |||||
| 4 | W10215464 | Panel, Console (silver) |
|
- | |||||
| 4 | WPW10215463 | Panel, Console (red) (Replaces: W10215463) |
|
$ 358.85 | |||||
| 5 | W10006580 | Screw |
|
- | |||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 7 | W10153920 | Spring, Knob |
|
- | |||||
| 8 | 8572039 | Seal, User Interface |
|
- | |||||
| 9 | W10215469 | Cover, Center (red) |
|
- | |||||
| 9 | W10215468 | Cover-center (silver) |
|
- | |||||
| 10 | WPW10247262 | Knob (Replaces: W10247262) |
|
$ 56.36 | |||||
| 11 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | WPW10266747 | Channel, Water (Replaces: W10266747) |
|
$ 73.96 | |||||
| 13 | W10117943 | Badge, Assembly |
|
- | |||||
| 14 | W10237301 | Cycle, Light Guide |
|
- | |||||
| 15 | 3400238 | Screw, 2-28 X 1/2 |
|
$ 12.03 | |||||
| 16 | W10215460 | Assembly, User Interface |
|
- |
