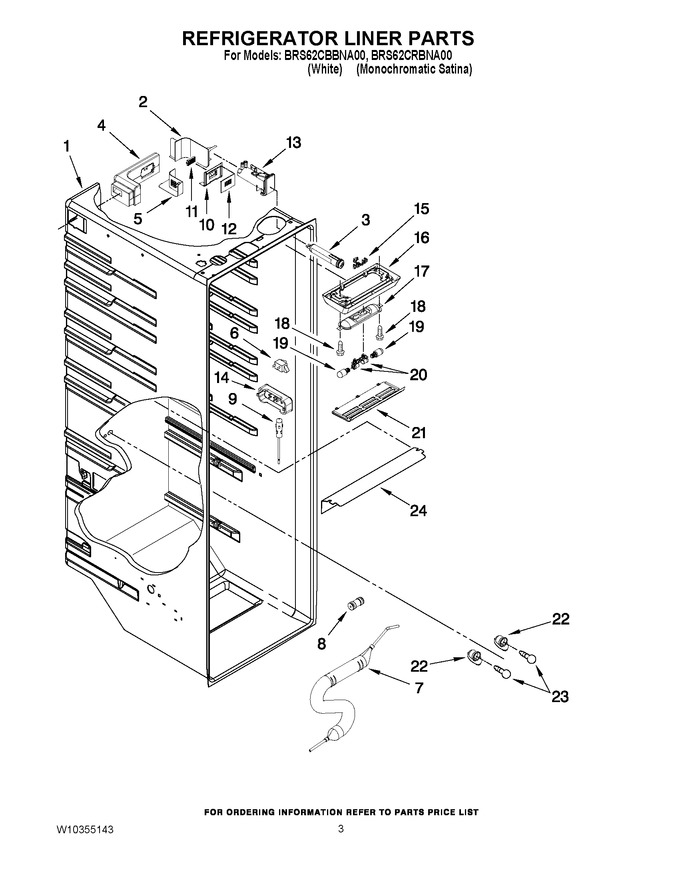

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WPW10260405 | Cover, Water Filter (Replaces: W10260403) |
|
$ 106.89 | |||||
| 3 | EDR1RXD1B | Water Filter (Replaces: W10295370) |
|
Immediately | $ 49.99 | ||||
| 4 | W10251516 | Air Diffuser Assembly |
|
- | |||||
| 5 | W10260407 | Air Diffuser Cover |
|
$ 42.69 | |||||
| 6 | W11384469 | Switch Rocker Arm (Replaces: C3680314) |
|
Immediately | $ 35.18 | ||||
| 7 | W11802492 | Reservoir (Replaces: W10238085) |
|
$ 80.02 | |||||
| 8 | WP2300868 | Connector (Replaces: W10271541) |
|
Immediately | $ 33.29 | ||||
| 9 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 30.24 | ||||
| 10 | W10260413 | Air Filter Housing |
|
- | |||||
| 11 | W10349302 | Air Filter |
|
- | |||||
| 12 | W10309405 | Air Filter Cover (Replaces: W10330014) |
|
- | |||||
| 13 | WPW10329943 | Housing, Water Filter (Replaces: W10329943) |
|
$ 70.64 | |||||
| 14 | WPW10425252 | Cover, Thermistor (Replaces: W10251510) |
|
Immediately | $ 79.54 | ||||
| 15 | W10279406 | Wire Assy, Top Light |
|
- | |||||
| 16 | W10280178 | Trim, Light |
|
- | |||||
| 17 | 2223680 | Shield, Heat |
|
$ 84.17 | |||||
| 18 | WP3400906 | Screw (Replaces: W10141632) |
|
$ 8.15 | |||||
| 19 | W11618980 | Light Bulb (Replaces: W10173035) |
|
$ 20.18 | |||||
| 20 | W11661565 | Socket, Light (Replaces: W10130033) |
|
Immediately | $ 32.24 | ||||
| 21 | W10280420 | Lens, Top Light |
|
$ 96.43 | |||||
| 22 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 23 | WP67002552 | Light Bulb (Replaces: 851682) |
|
Immediately | $ 11.11 | ||||
| 24 | WPW10269099 | Lens, Light (Replaces: W10295024) |
|
$ 115.21 |
