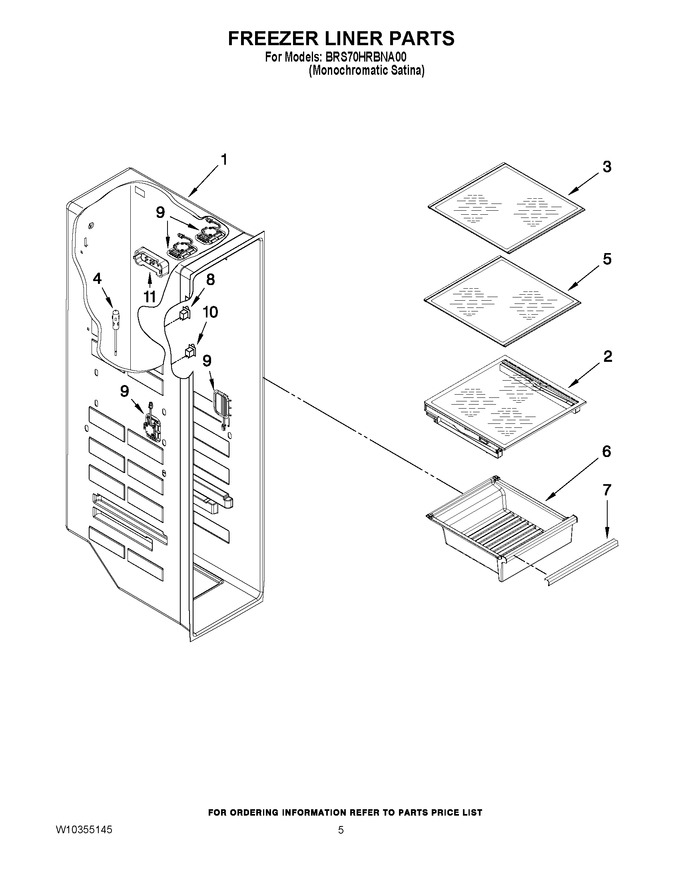

04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10260977		Cover Assy		Appelez-nous	-
3	WPW10261025		Shelf, Glass Upper   (Replaces: W10261025)				$ 209.35
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 30.24
5	WPW10261028		Shelf, Glass Lower   (Replaces: W10261028)				$ 207.27
6	W11106313		Pan, Freezer Upper Also Order 7   (Replaces: W10260983)				$ 110.85
7	W11236850		Trim, Handle   (Replaces: W10260986)		Appelez-nous	-
8	W11457217		Switch, Rocker Arm Upper   (Replaces: 2321285)				$ 36.08
9	W11683241		Led Light Assy   (Replaces: W10279030)			Immediately	$ 244.77
10	W11123943		Switch, Rocker Arm Lower   (Replaces: 2149954)				$ 32.99
11	W10425253		Cover, Thermistor   (Replaces: W10323646)		Appelez-nous	-
